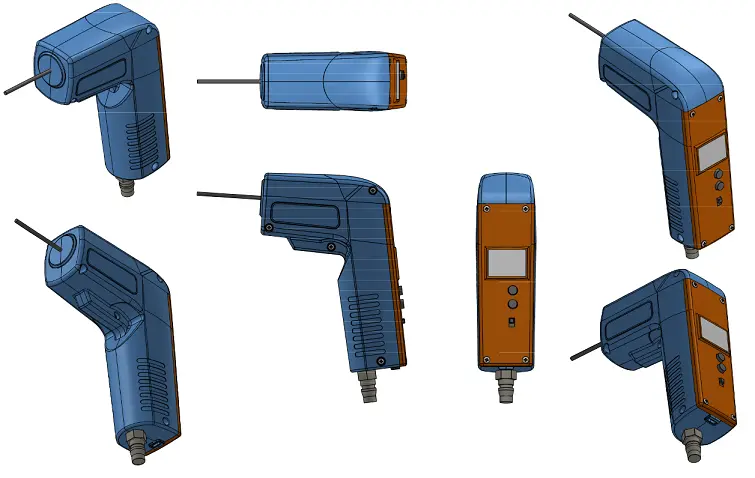

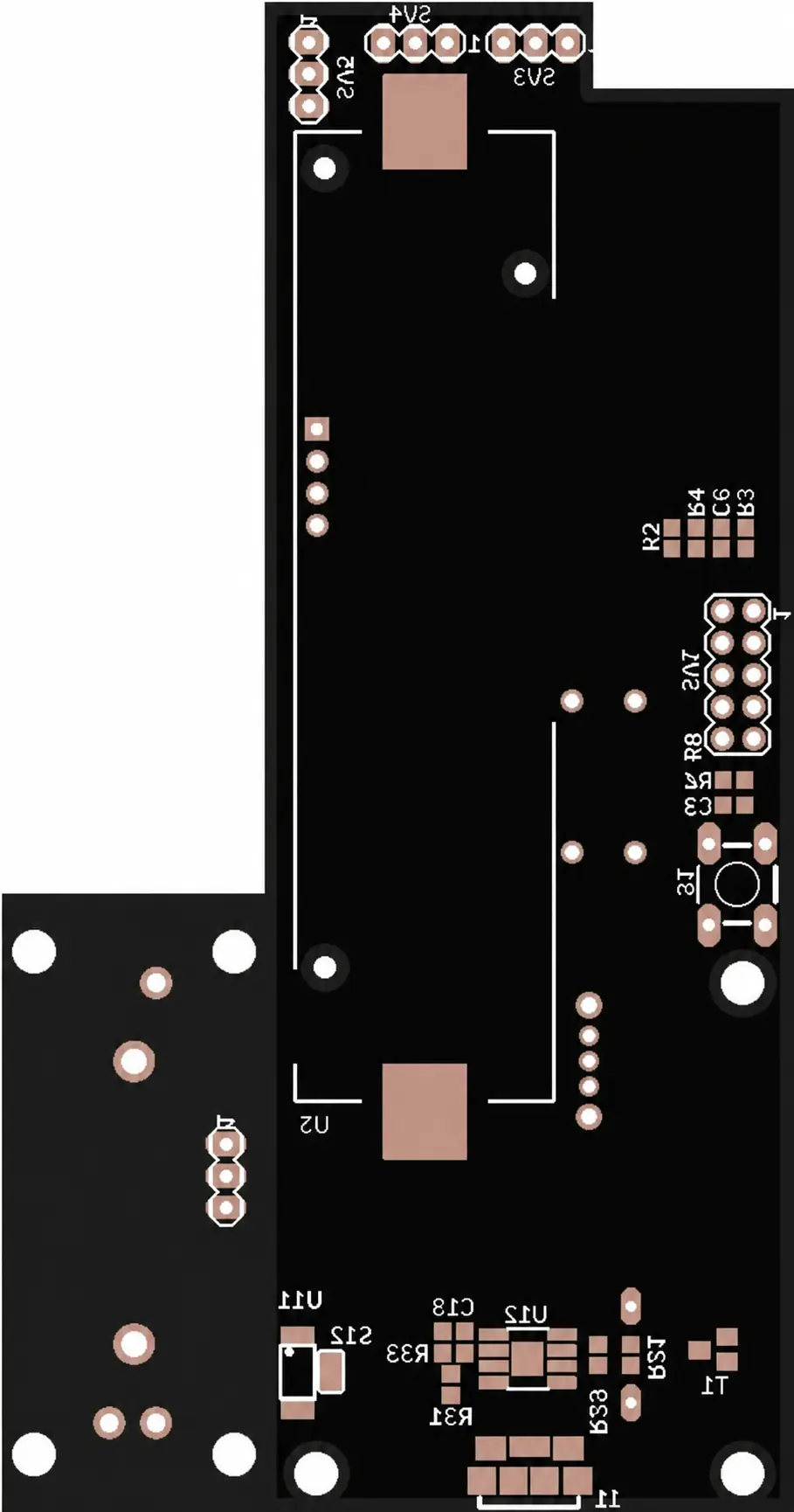

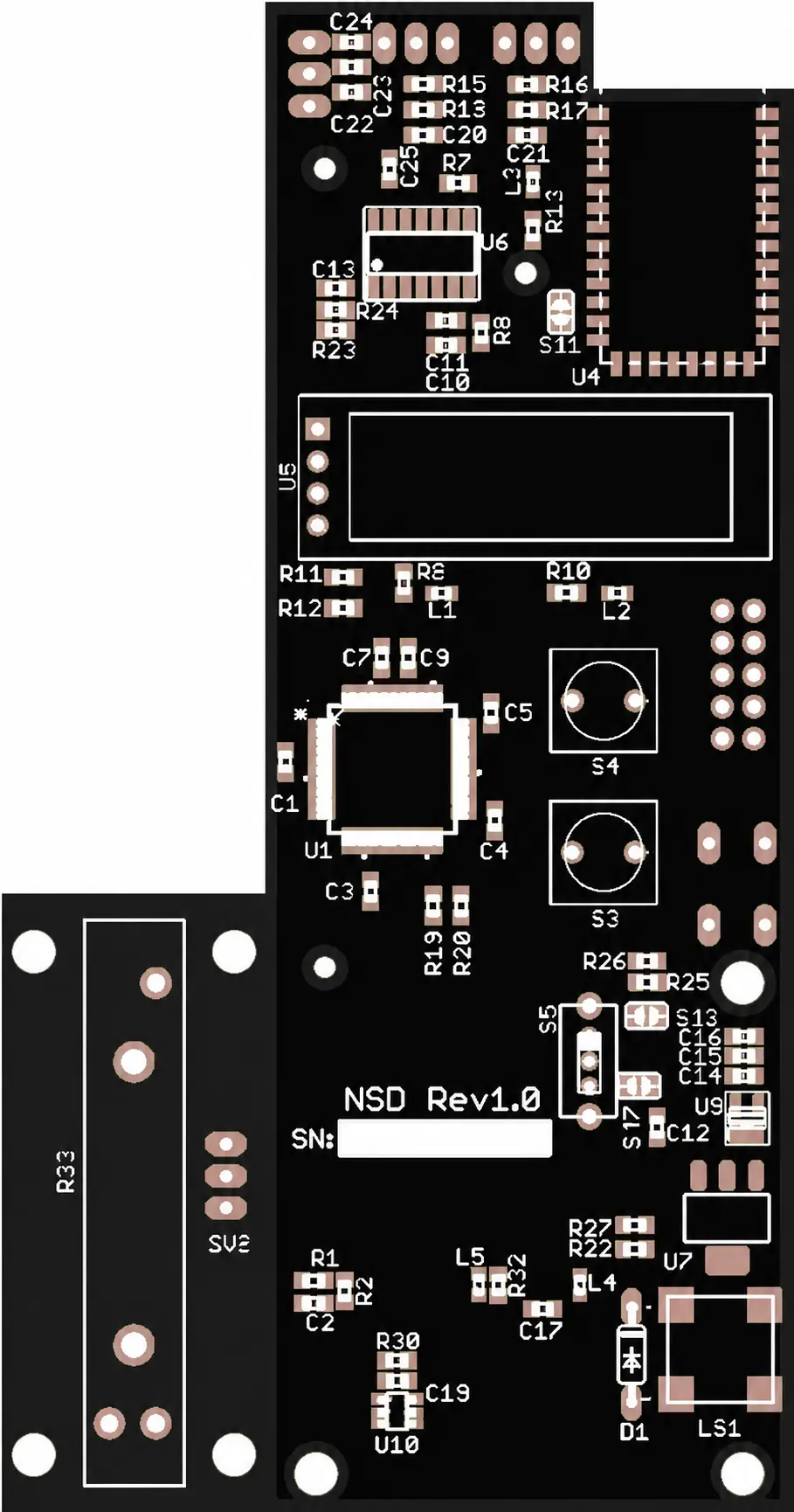

Bluetooth-enabled turnkey measurement hardware developed for an automotive tyre manufacturer, with an ergonomic enclosure designed for easy access to the tyre.

• Tread-depth range: 0–25 mm with 0.005 mm accuracy.
• Tyre-pressure range: 15–230 PSI with 1 PSI accuracy.
• Transfers measured parameters to a phone and remote database.
• Typical battery operating time of 24–36 hours.

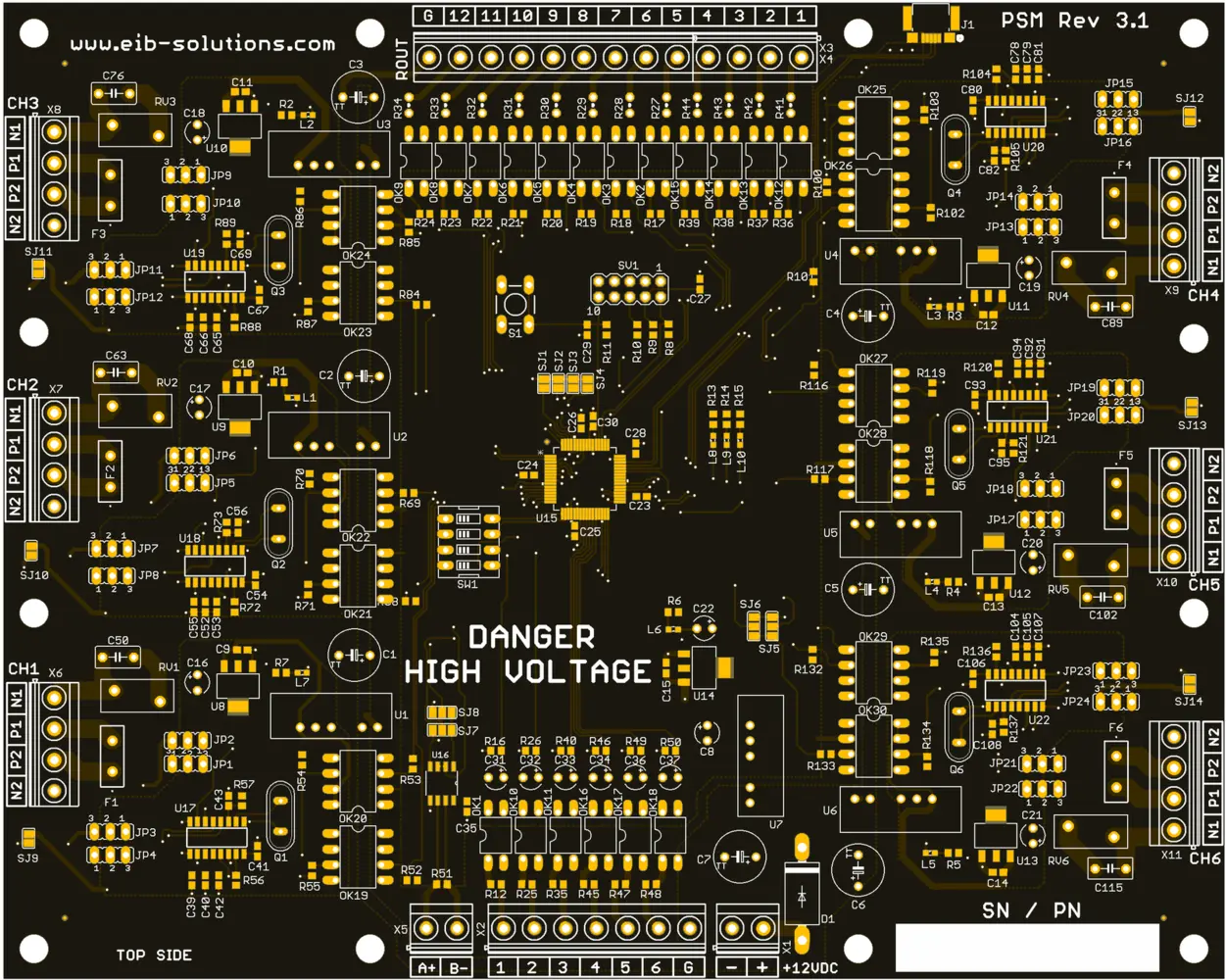

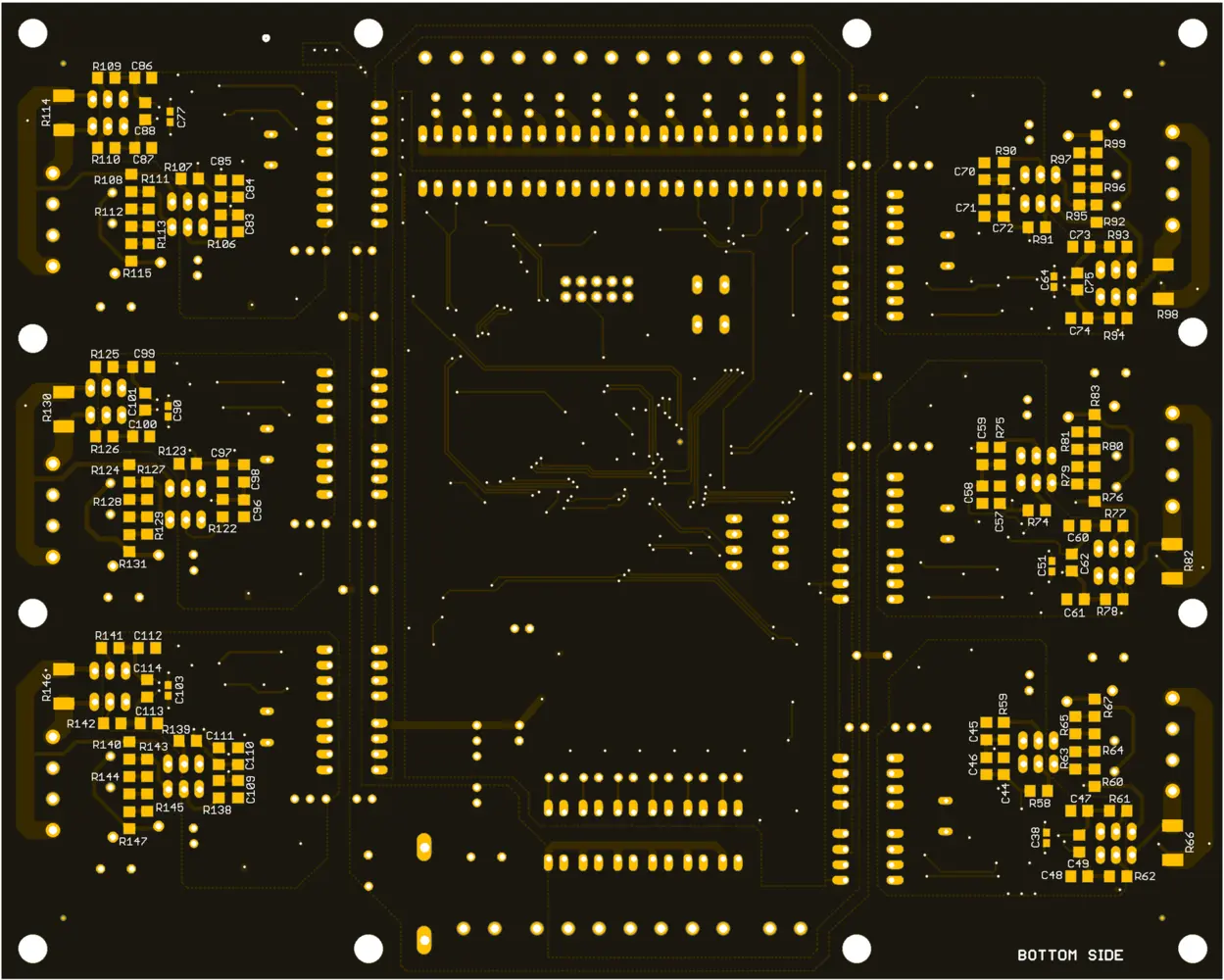

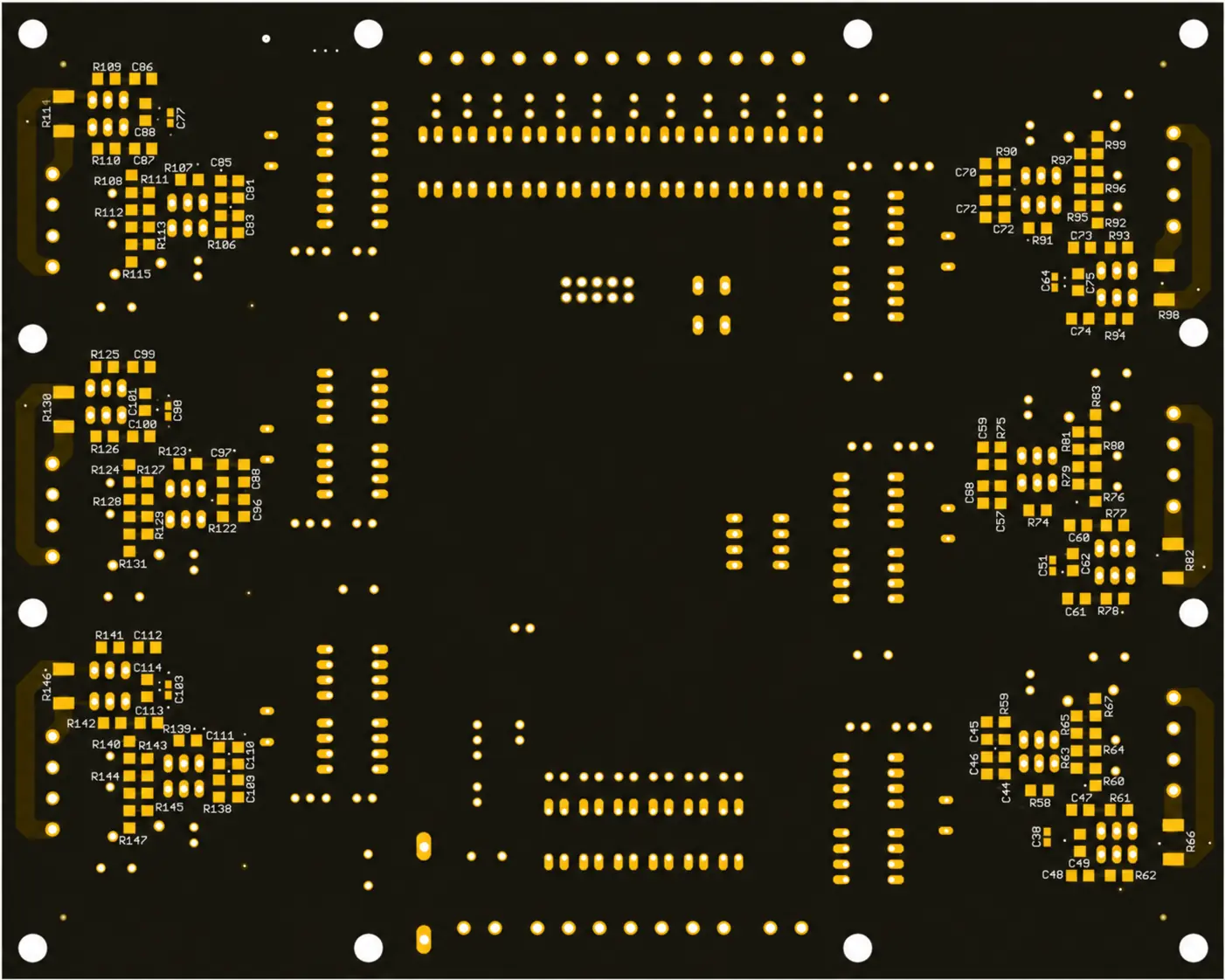

Production test and data-logging system developed for electrical and electronic OEMs manufacturing high-volume products such as LED bulbs and drivers.

• Six independent isolated measurement channels.
• Measures voltage, current, power factor, active power, reactive power and frequency.
• USB configuration with Windows-based data processing and logging.
• 400 VAC, 2 A measurement range with Class 1 accuracy; ranges can be adapted.
• Custom jigs and fixtures can be developed for different specimens.

Cost-effective interface electronics that extend the useful life of existing industrial equipment without redesigning the complete control board.

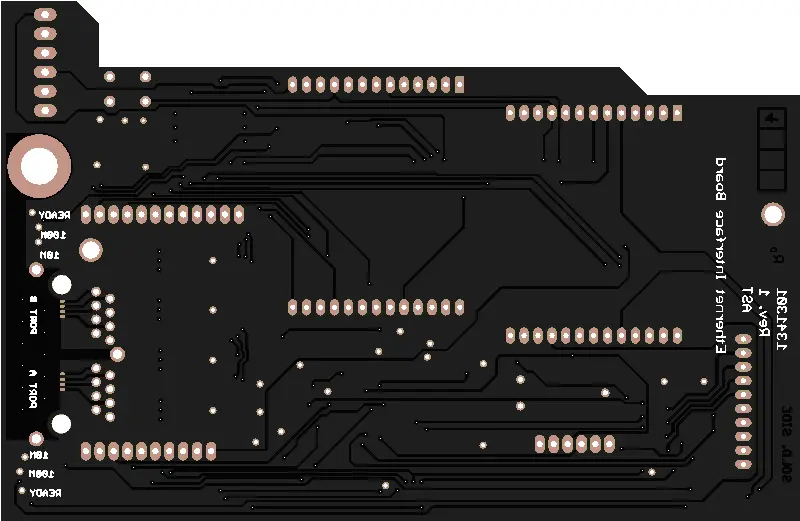

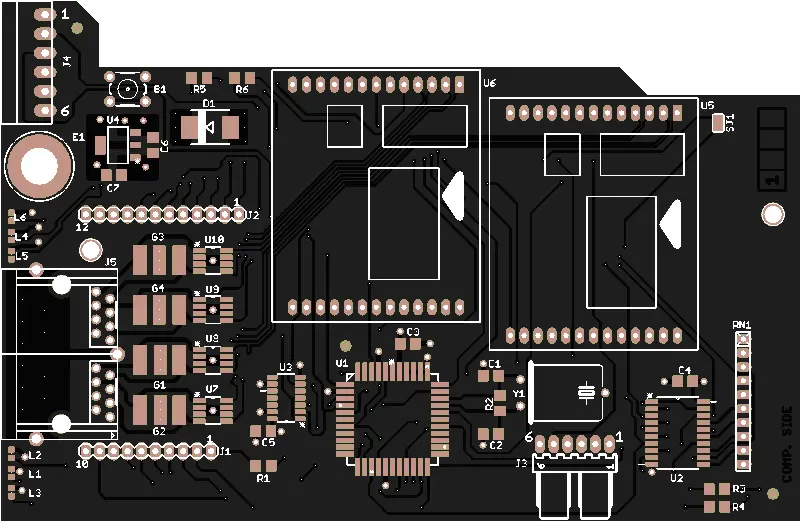

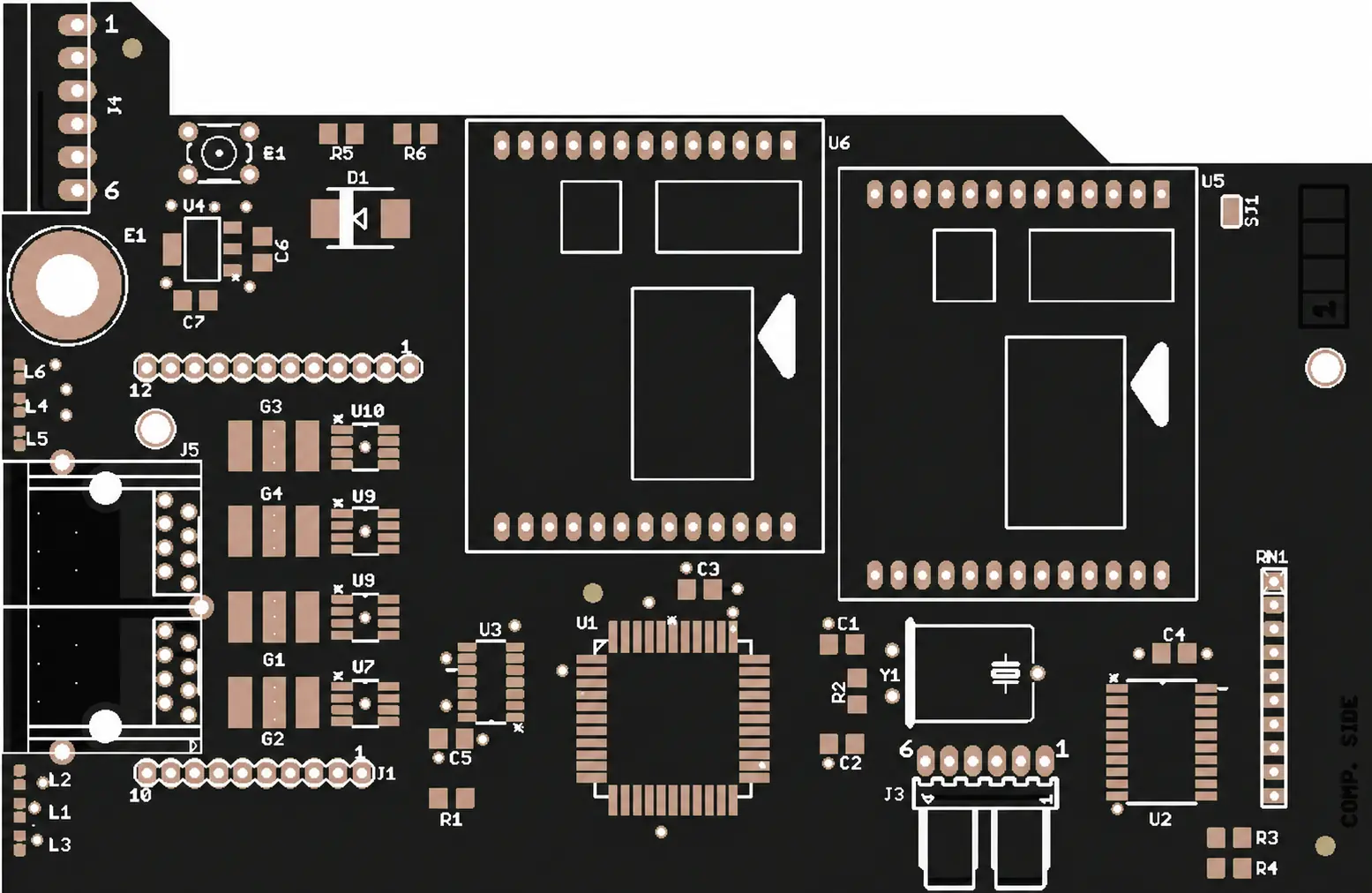

• Serial-to-Ethernet conversion with intrinsic-safety provisions for oil and gas applications.
• Retrofit-compatible form factor to reduce mechanical and wiring changes.

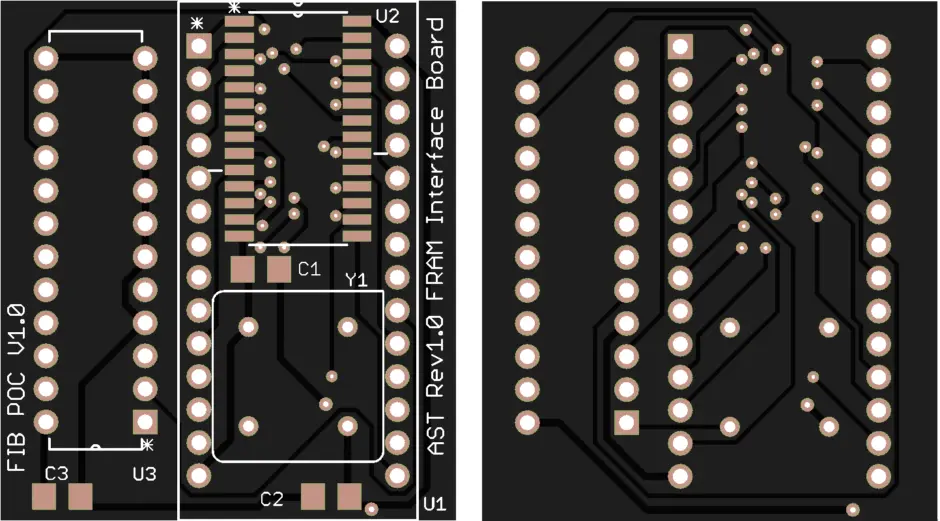

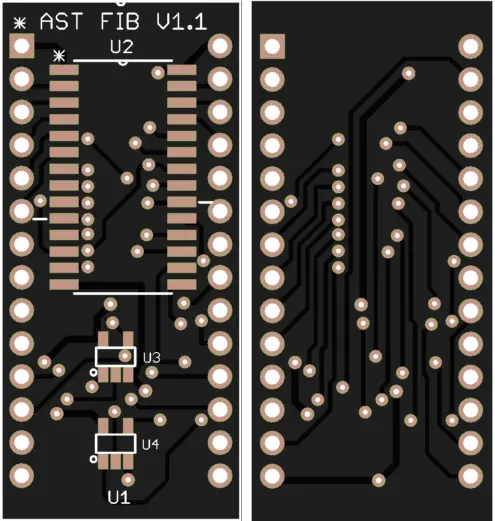

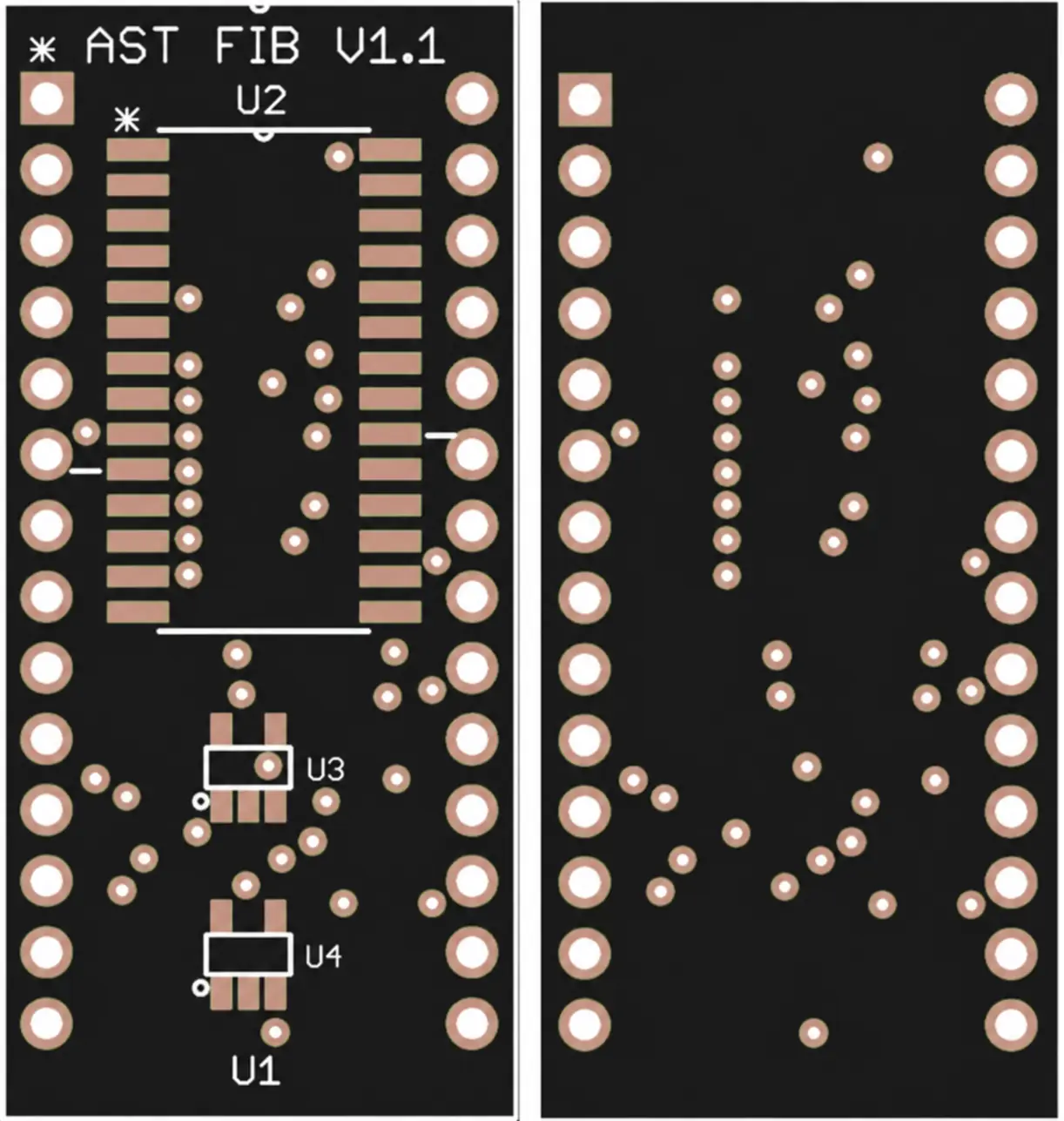

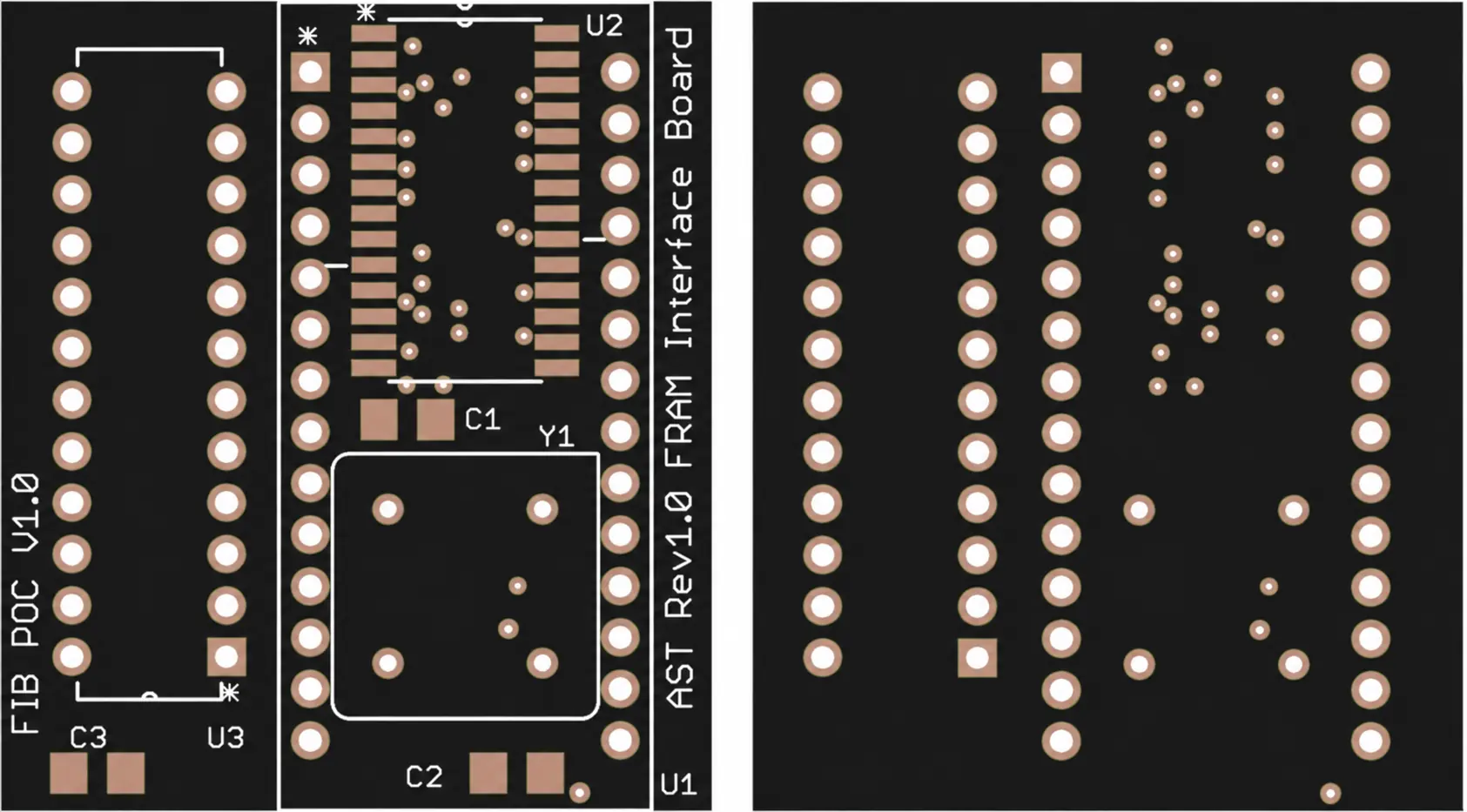

• Legacy RAM replacement using a modern ferromagnetic RAM daughter board.
• FPGA and logic-based signal adaptation for compatibility with the original hardware.

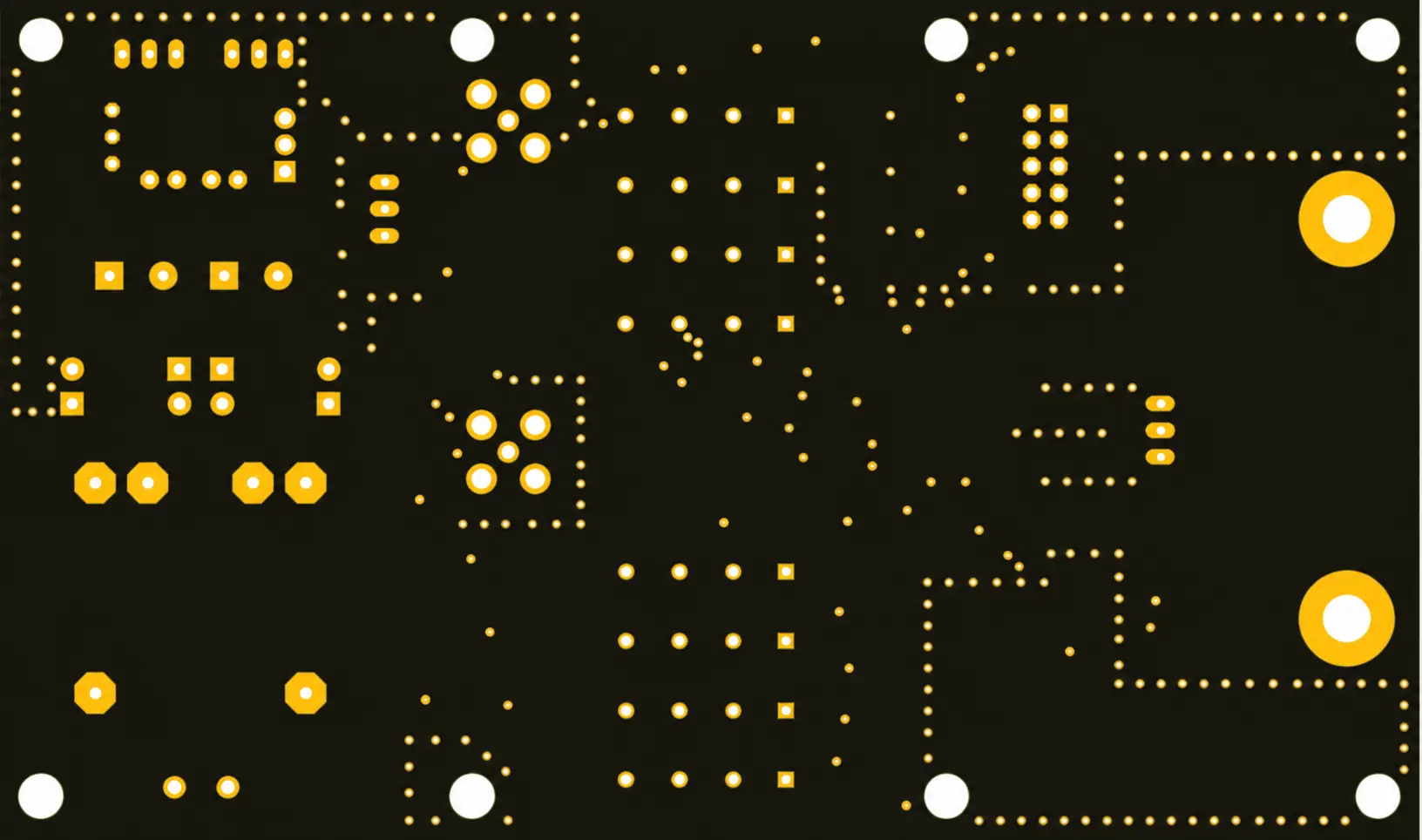

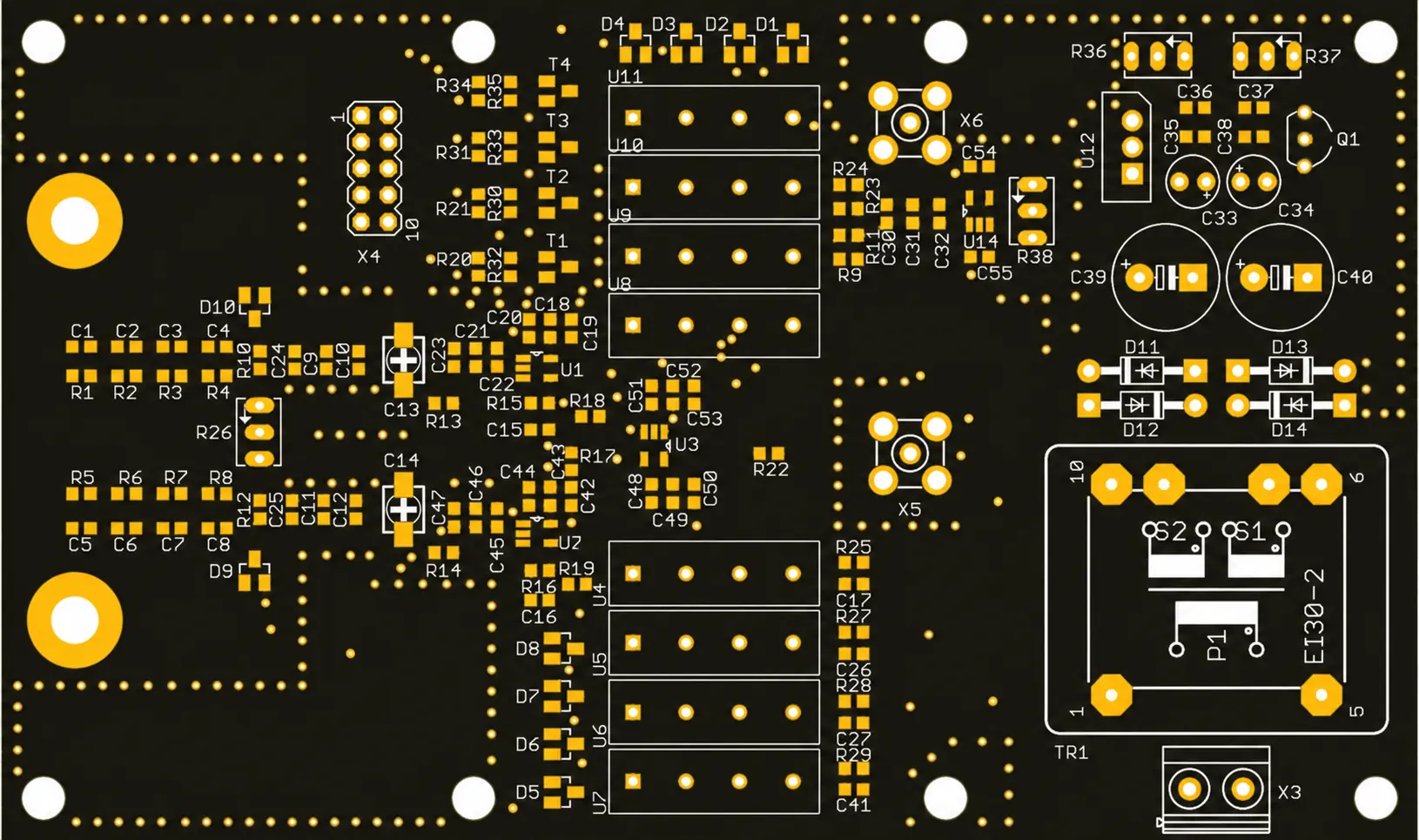

Custom analog measurement electronics for wide-band signal conditioning and economical low-frequency indication.

• Differential or single-ended analog front end covering DC to 30 MHz.

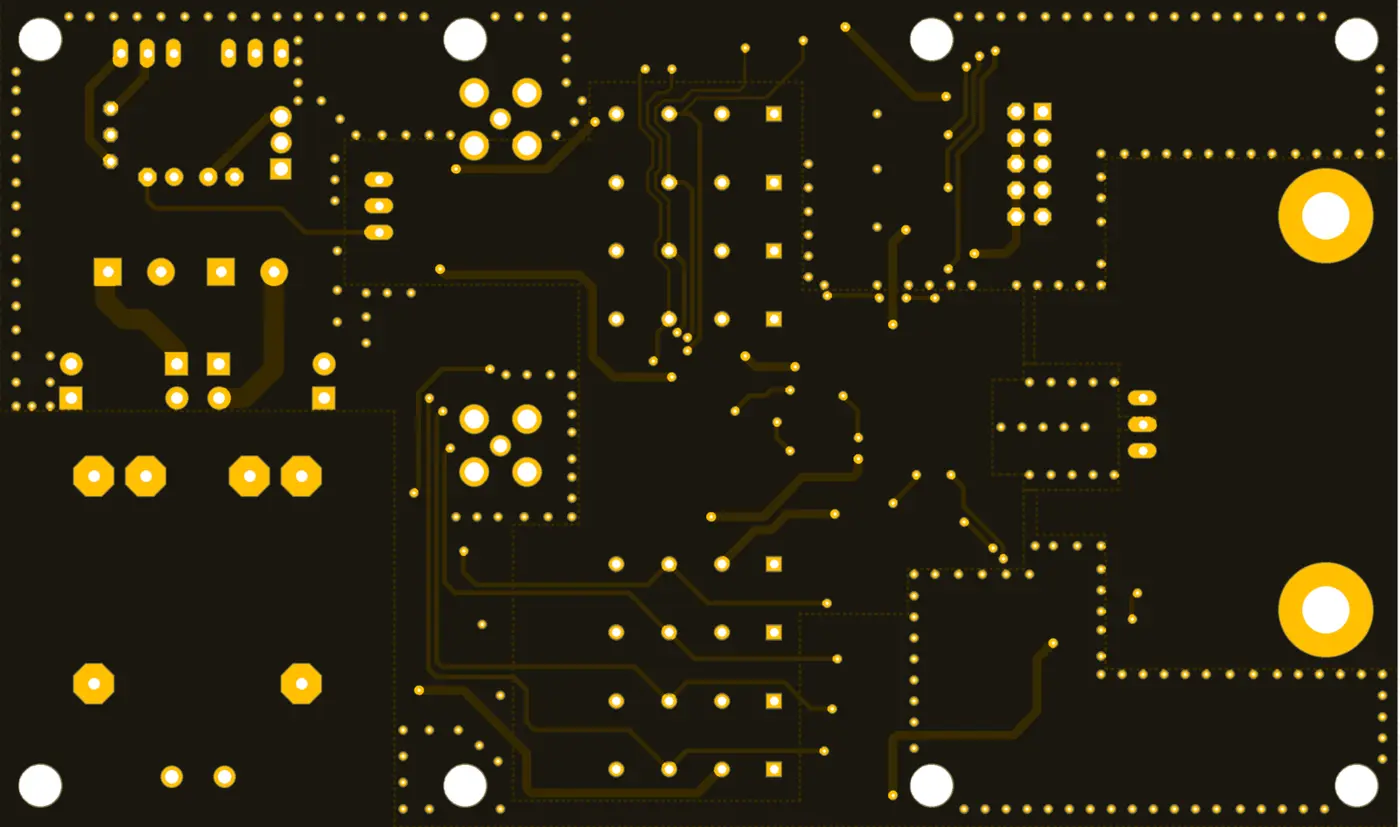

• Four relay-selected attenuation levels with channel tuning.
• Transformer-isolated, filtered onboard power supply.

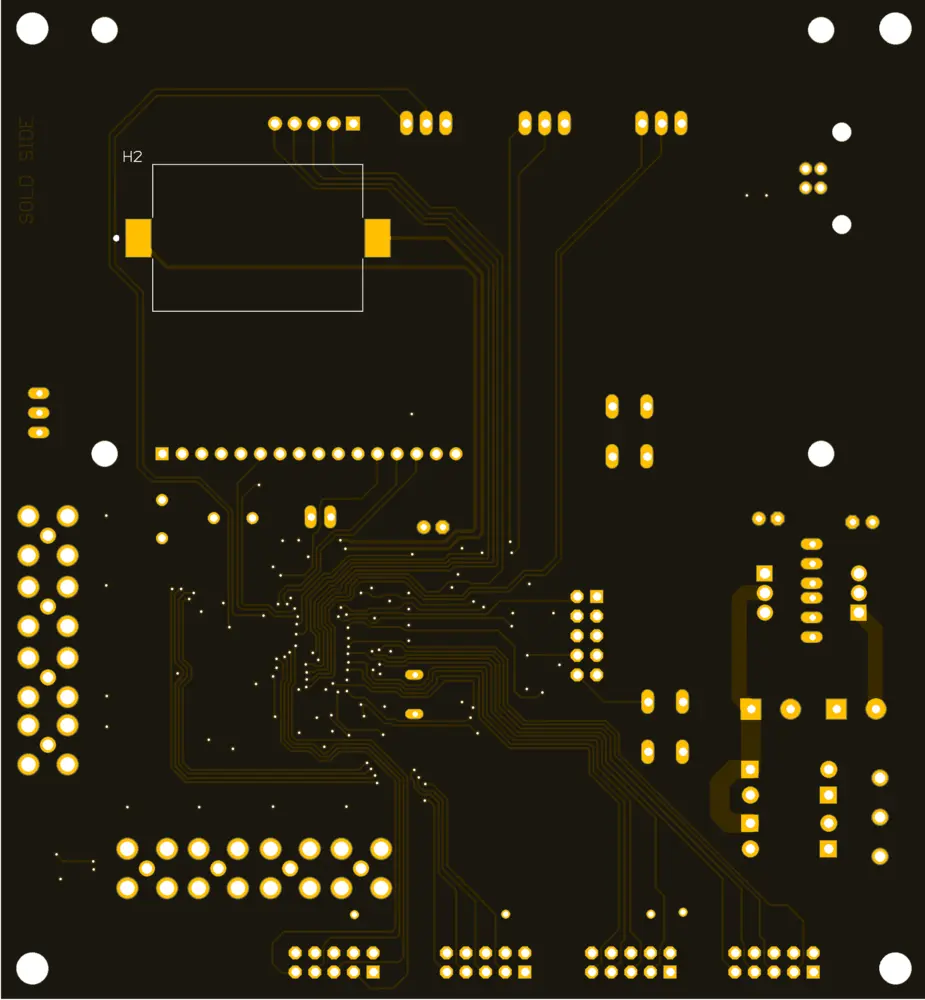

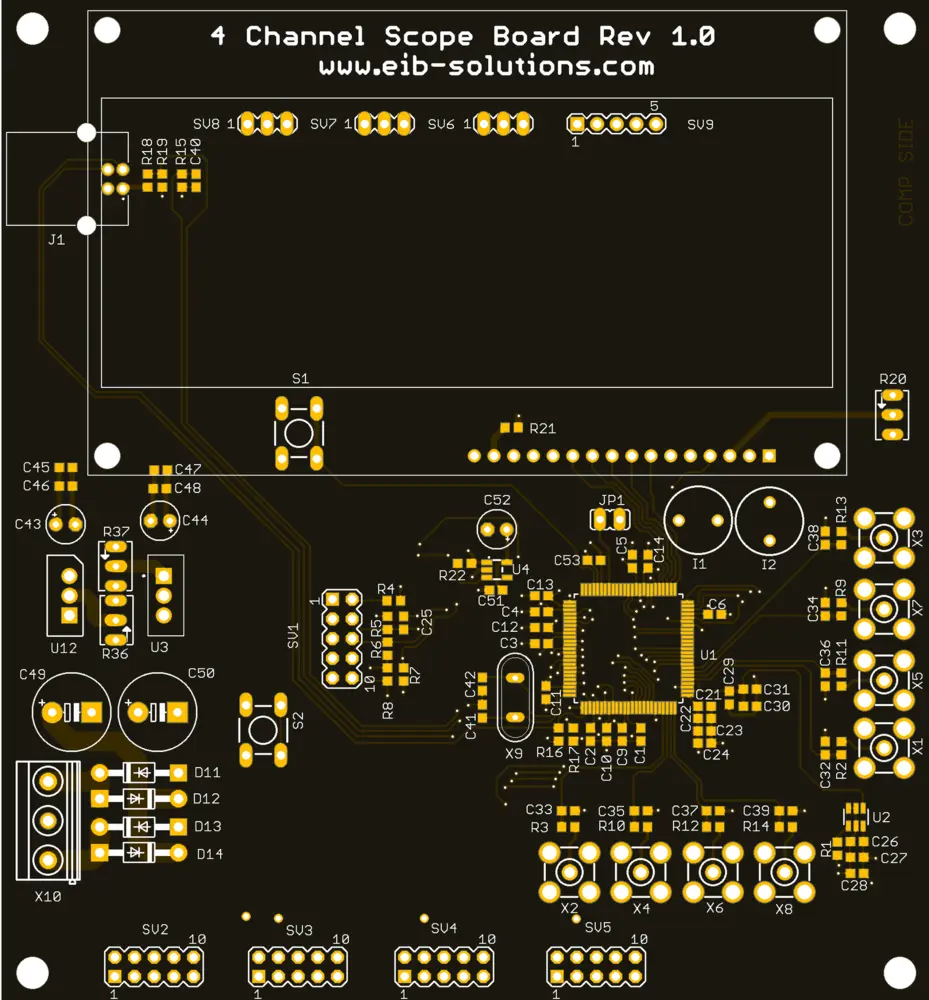

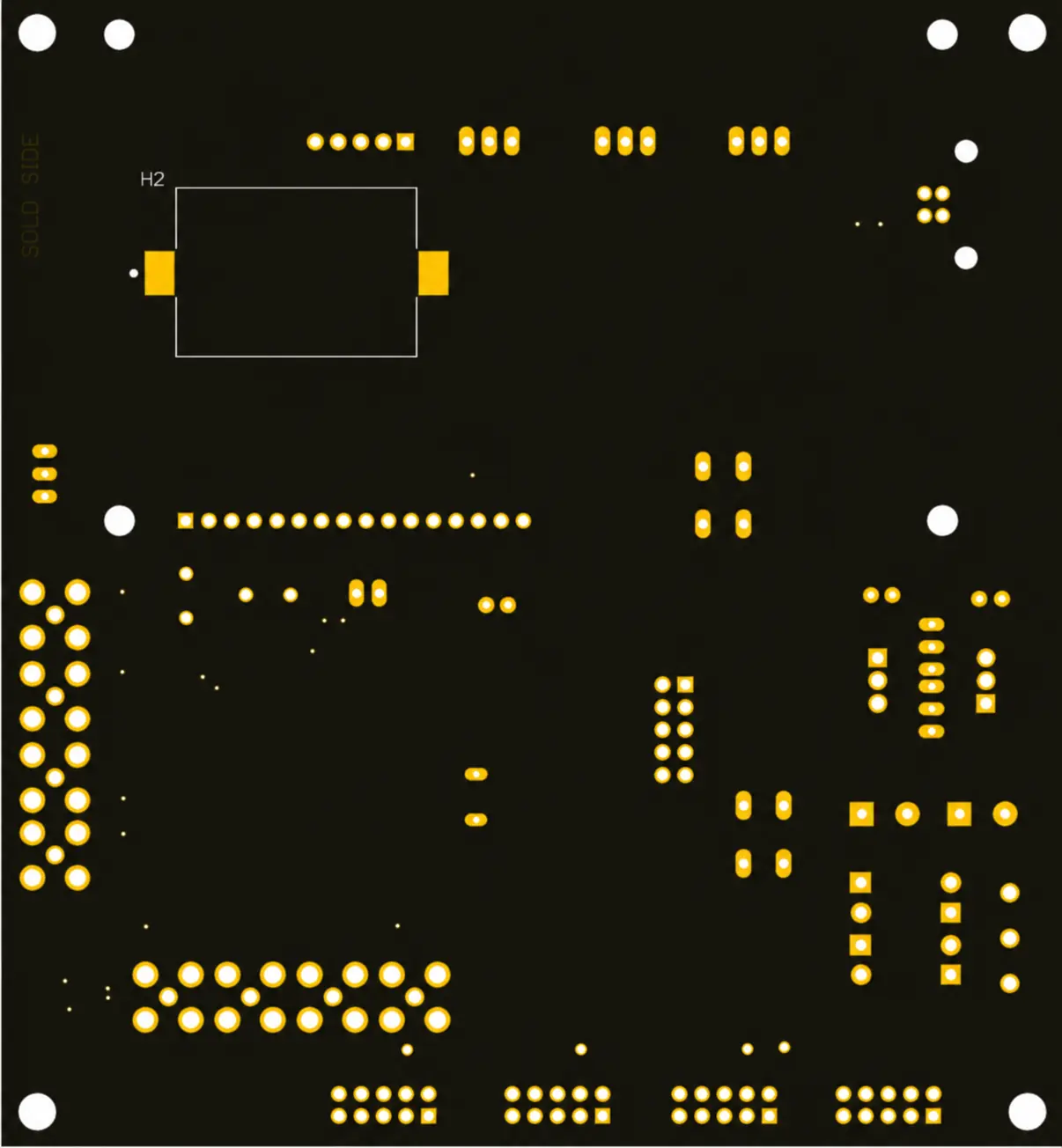

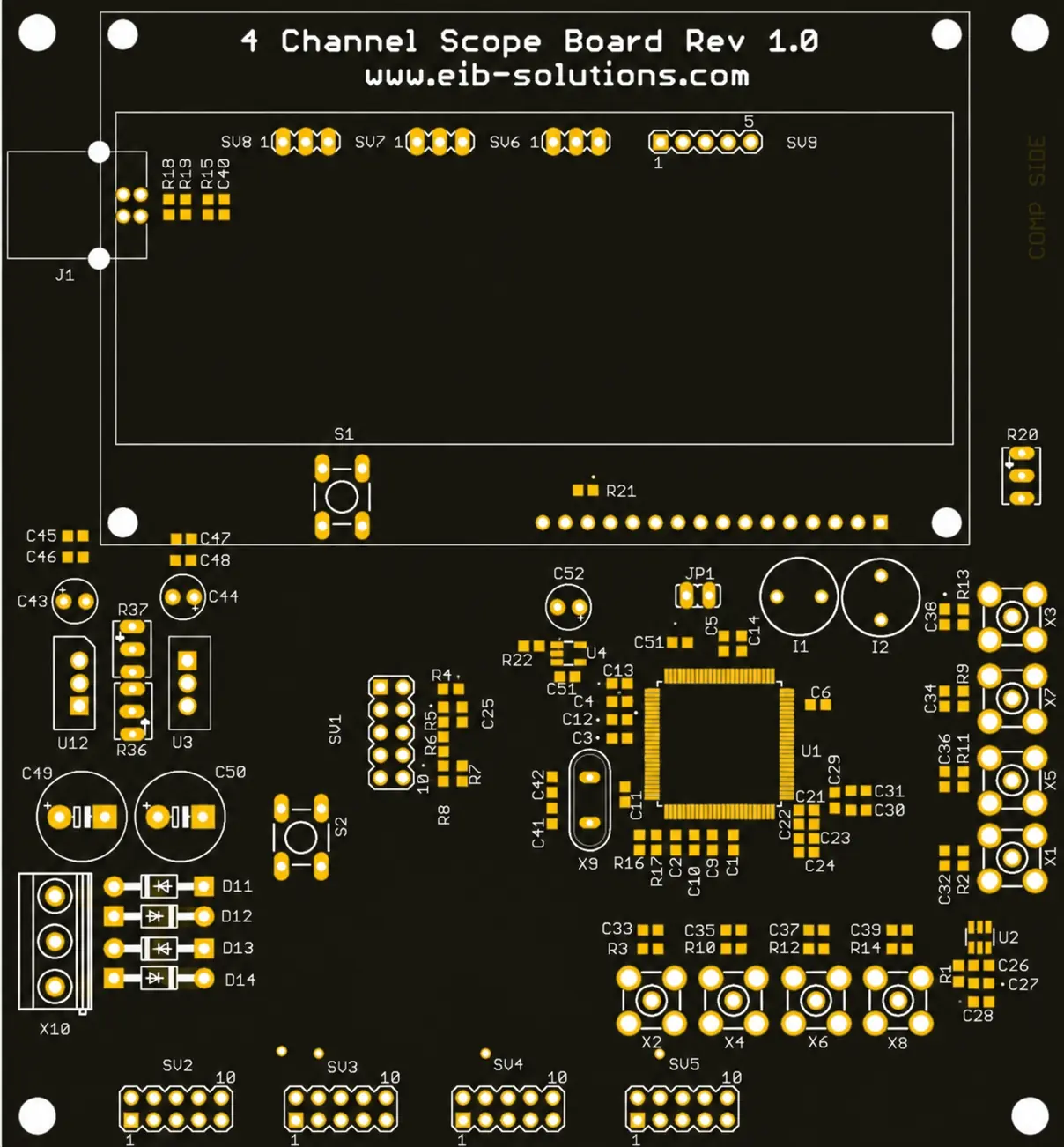

• Four-channel low-frequency measurement up to 4 kHz with 2% full-range accuracy.
• RMS, peak and DC-level indication for rapid signal assessment.

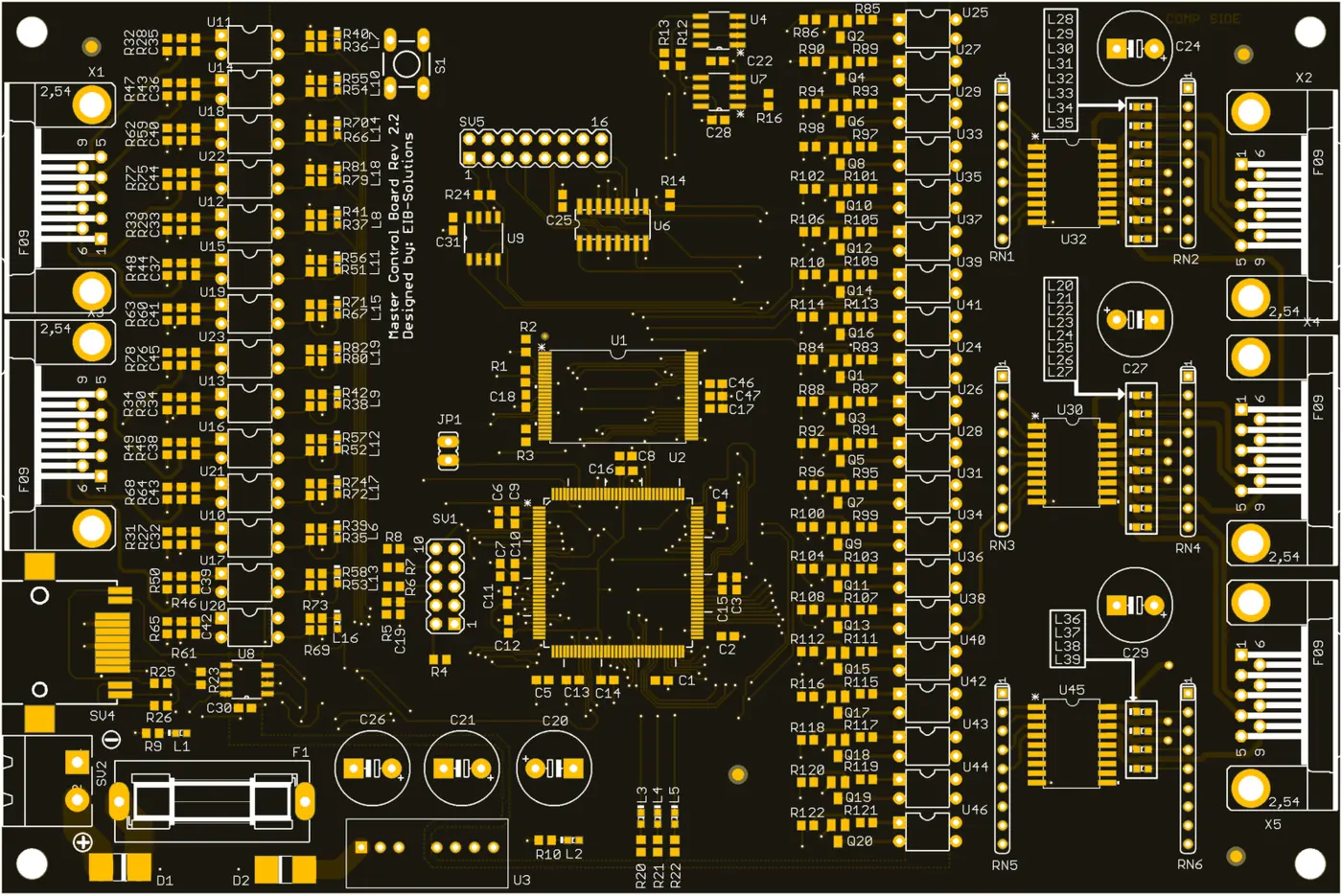

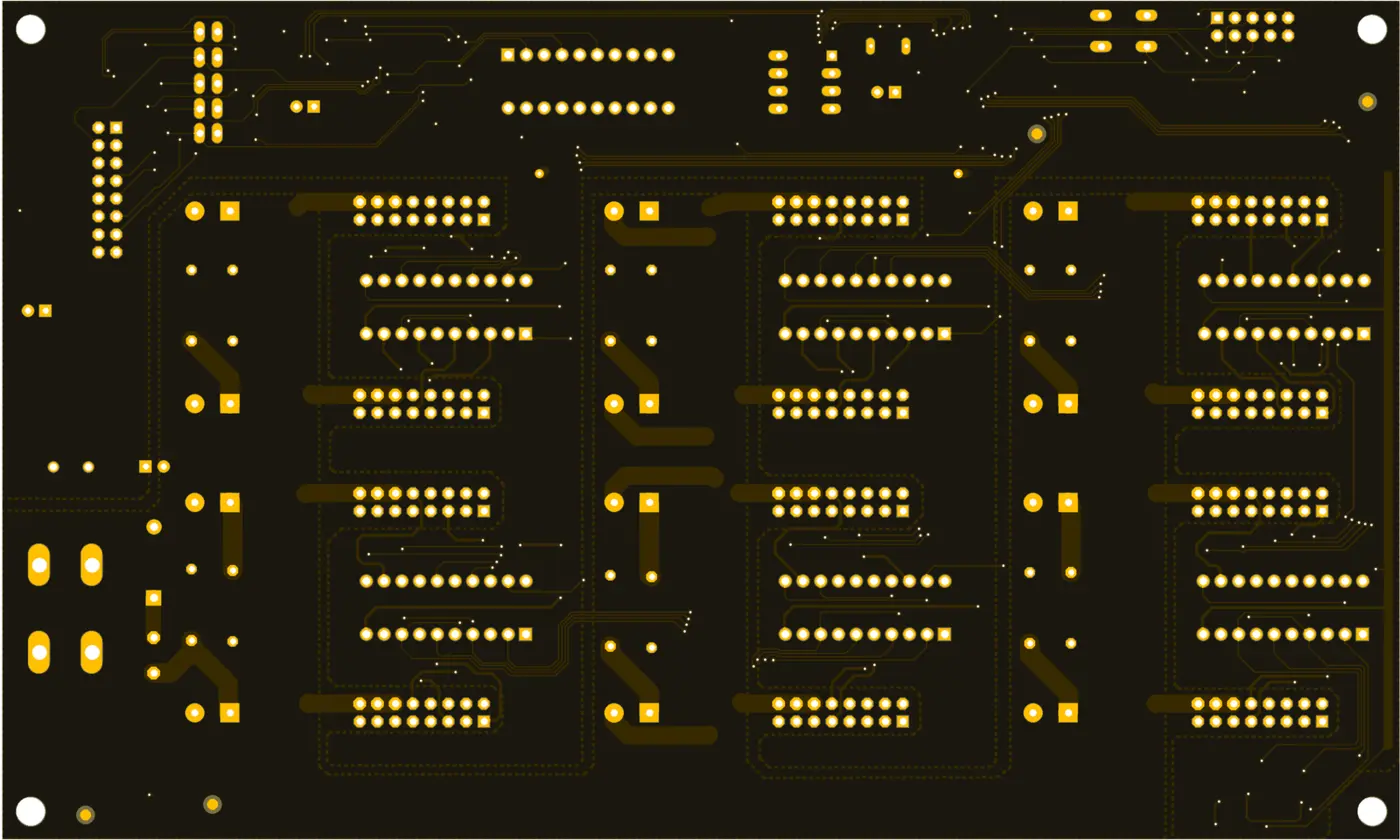

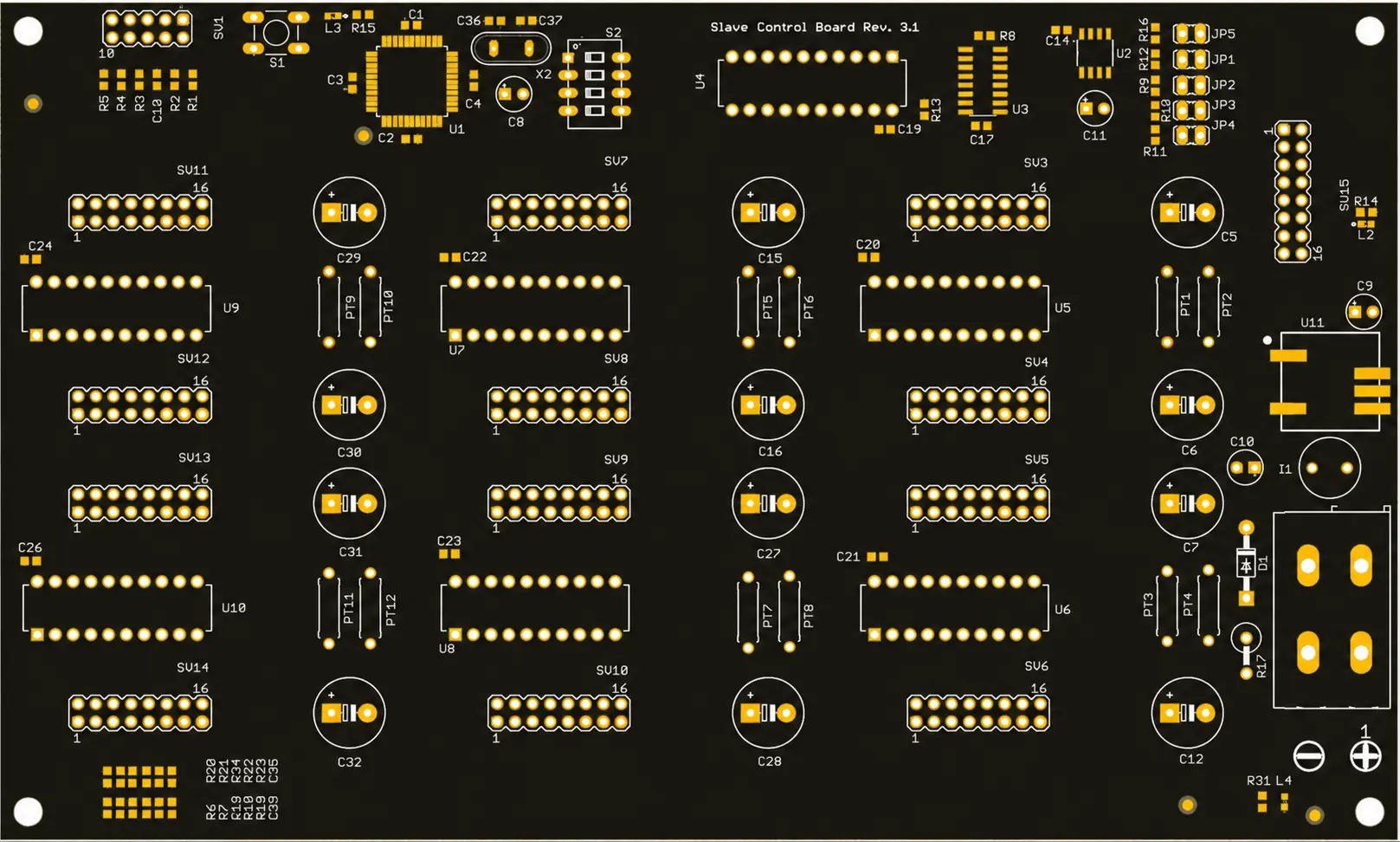

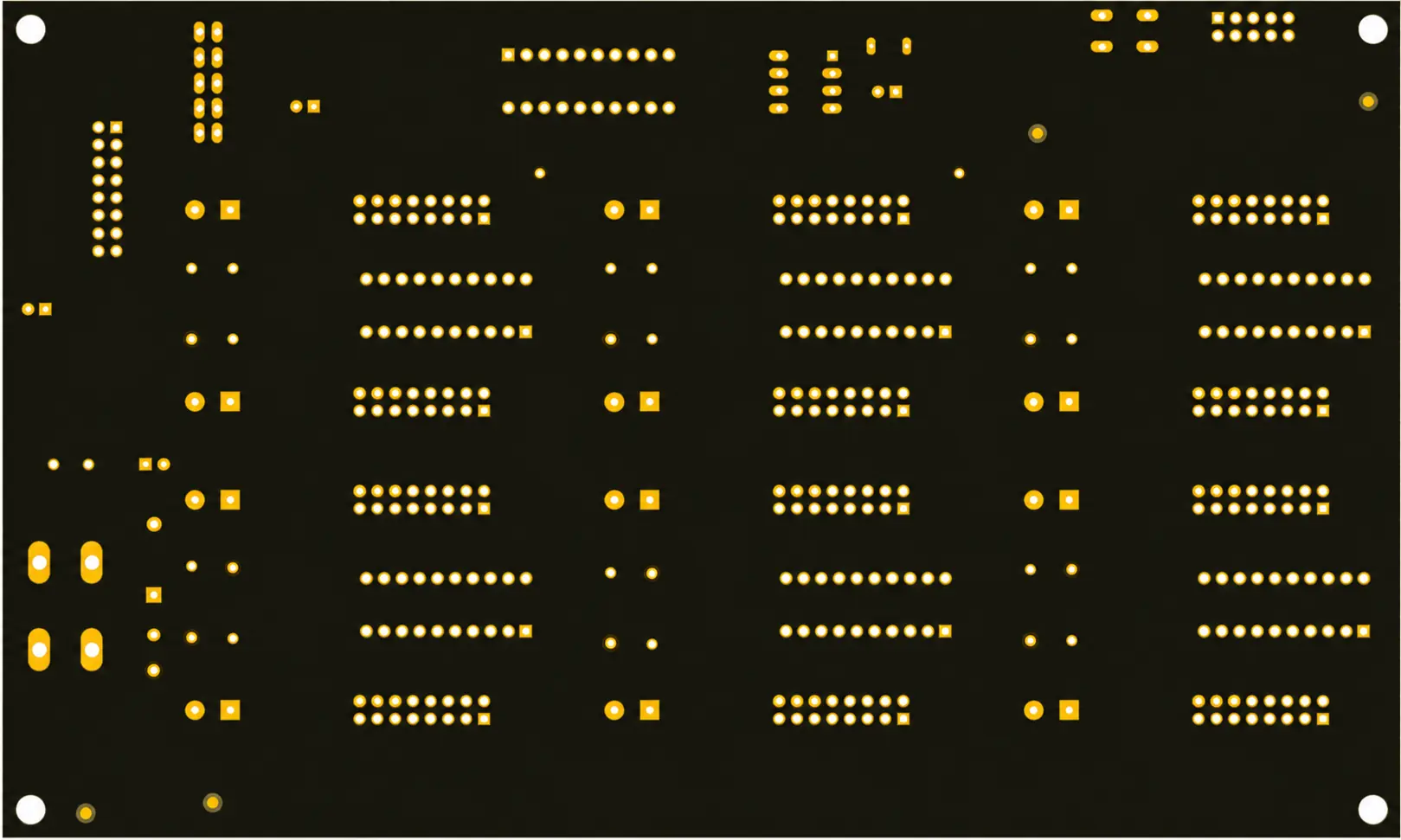

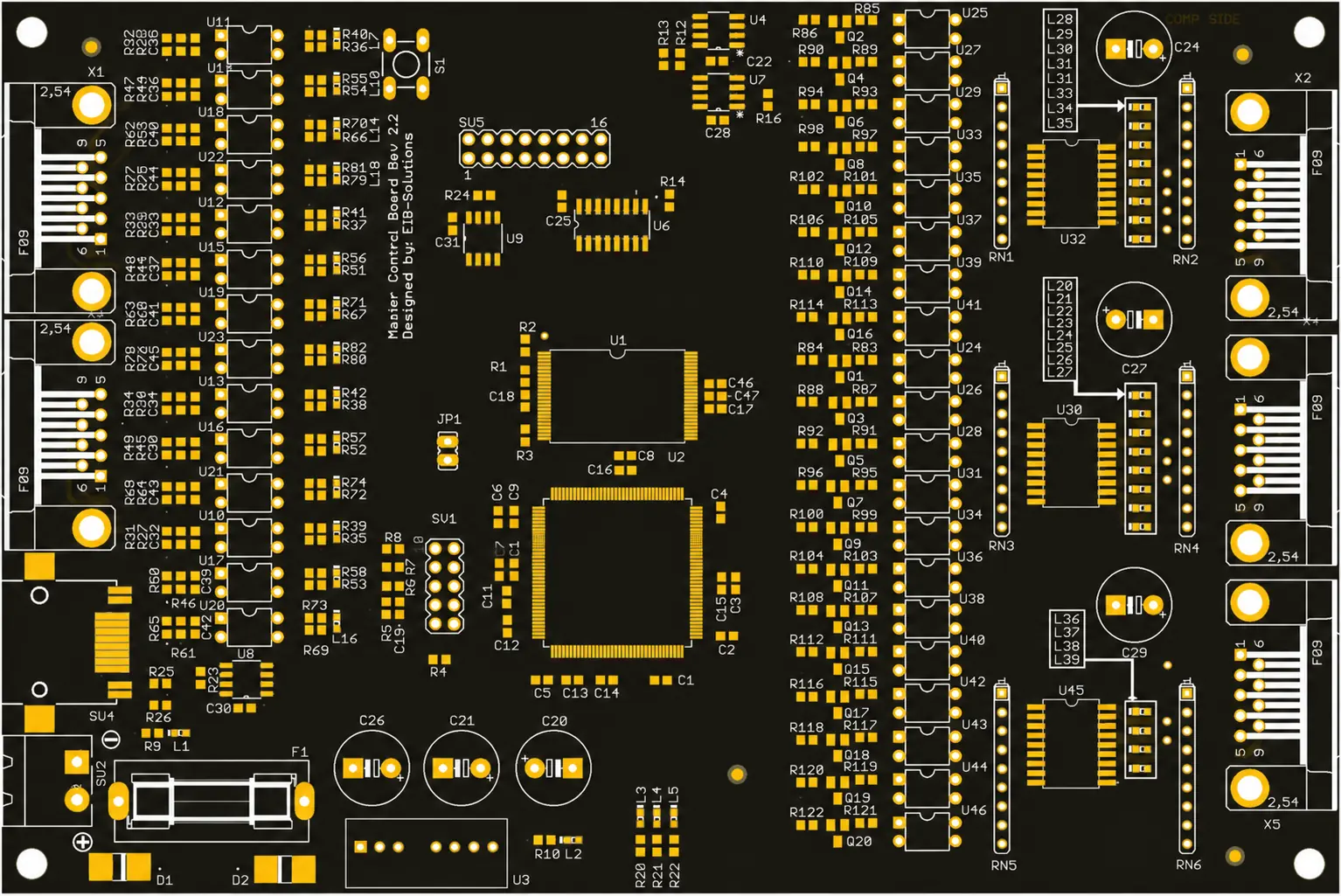

Modular electronic systems developed for textile-machine control, operator input and replacement of mechanical motion-control arrangements.

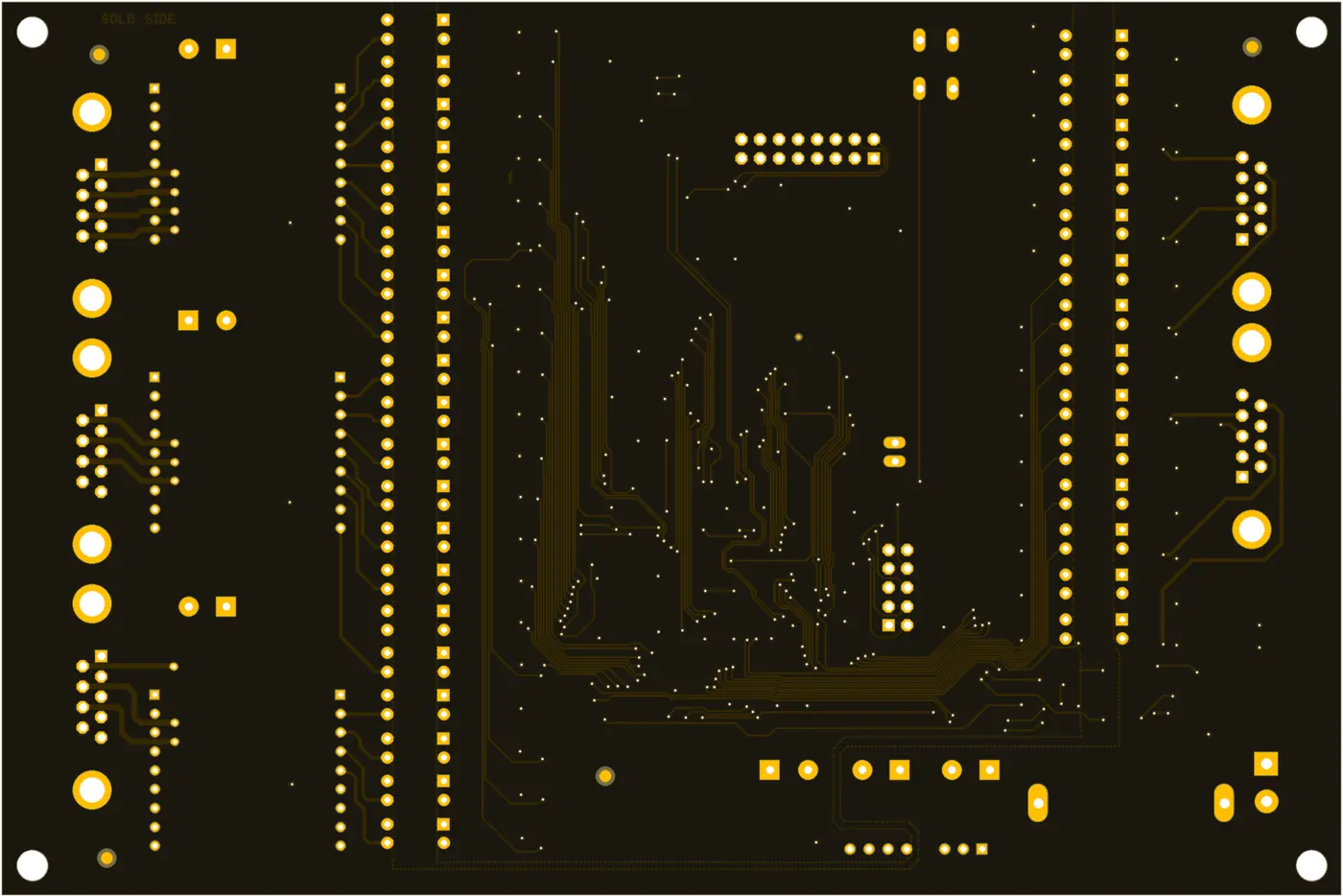

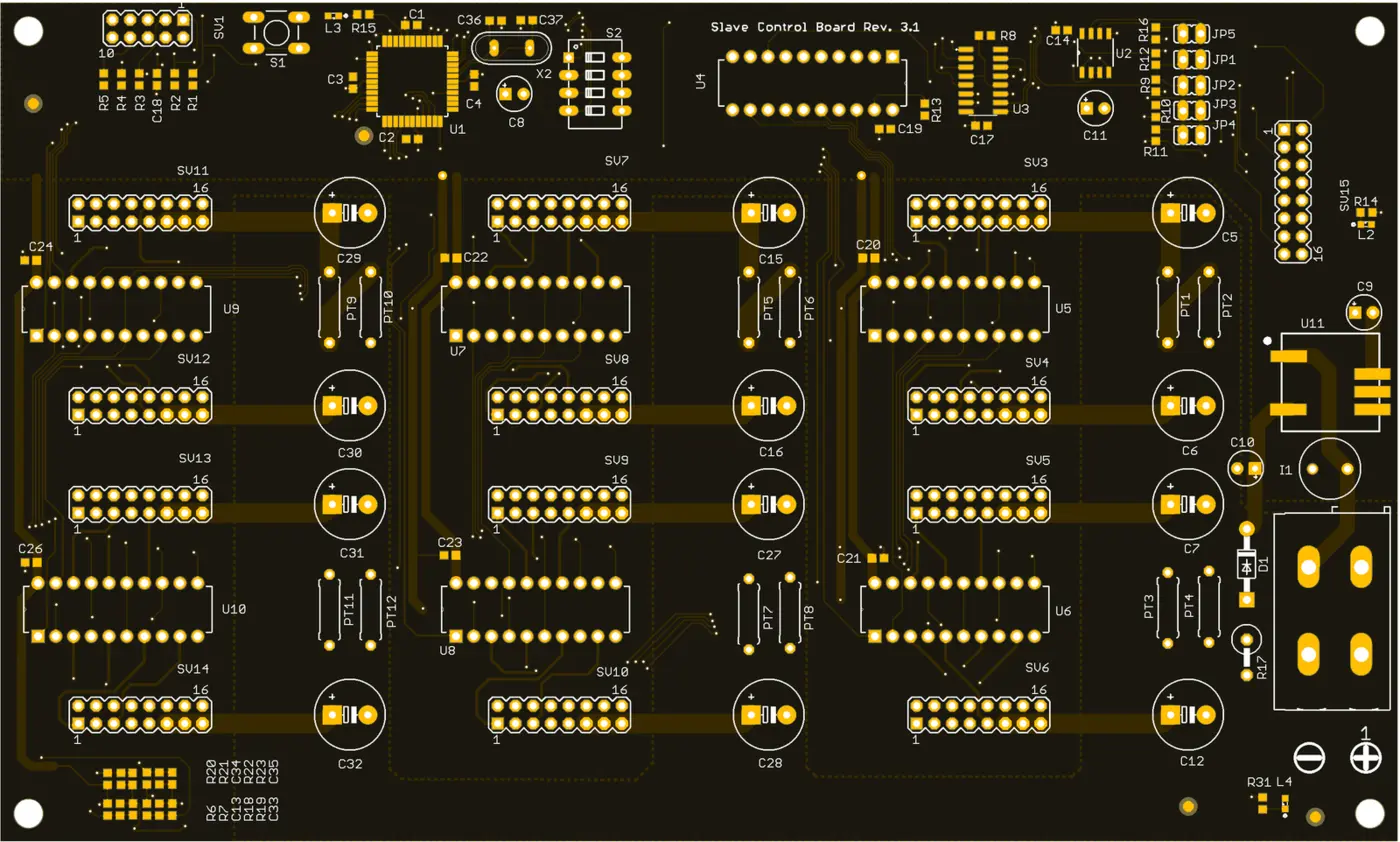

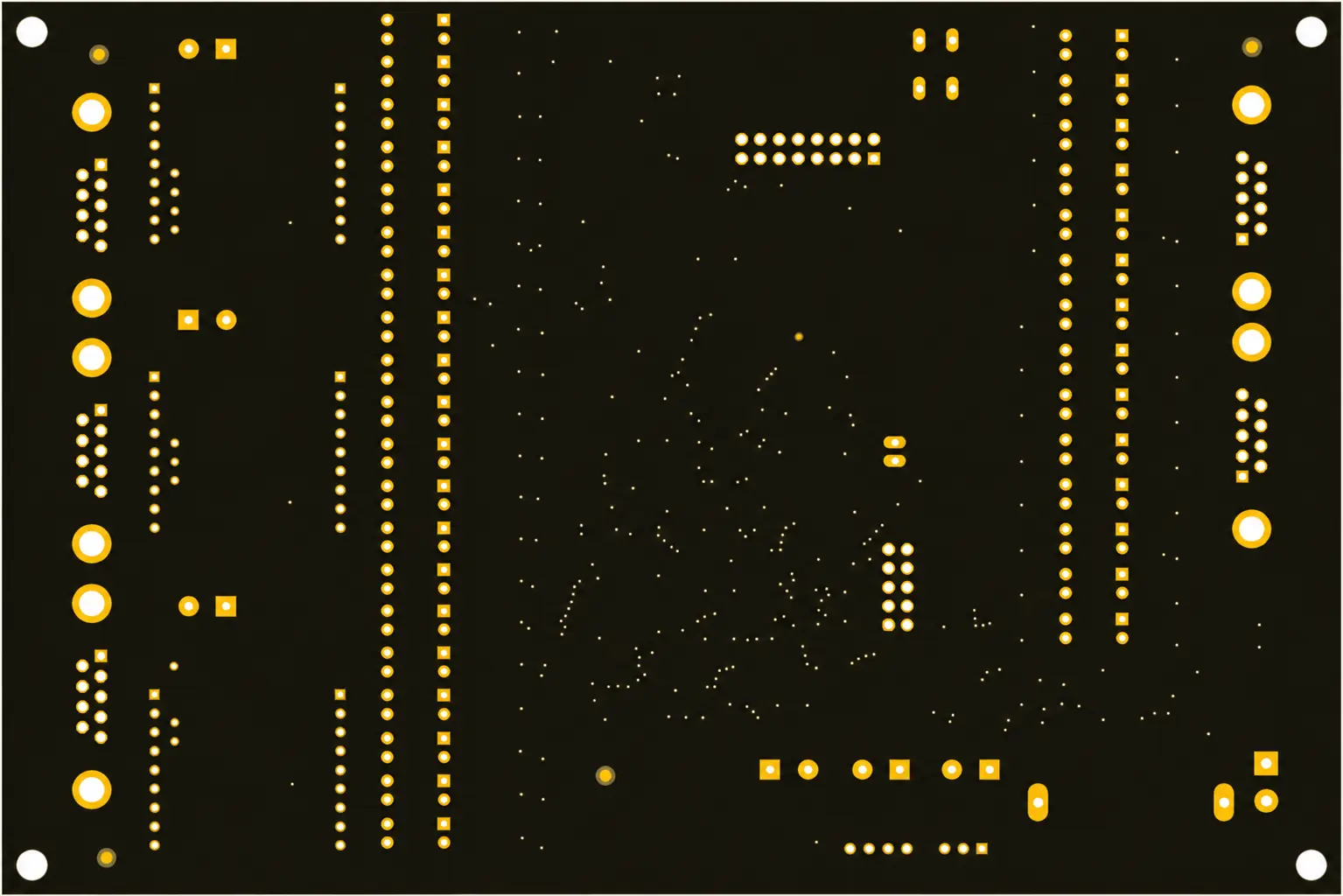

• Scalable high-speed Jacquard control for up to 7,200 hooks.
• Character LCD or 7-inch colour-display operator options.
• Large design storage with modular construction for serviceability.

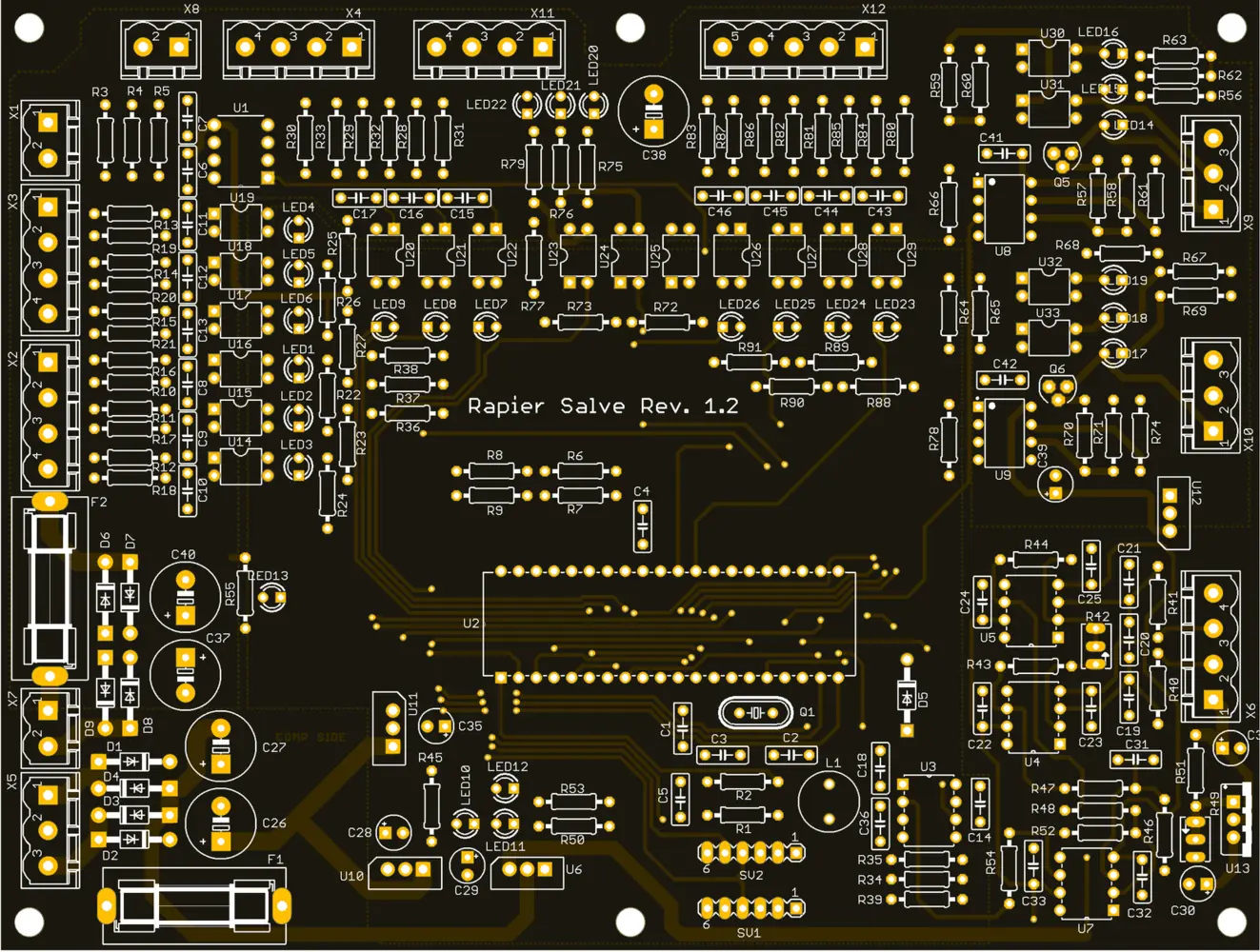

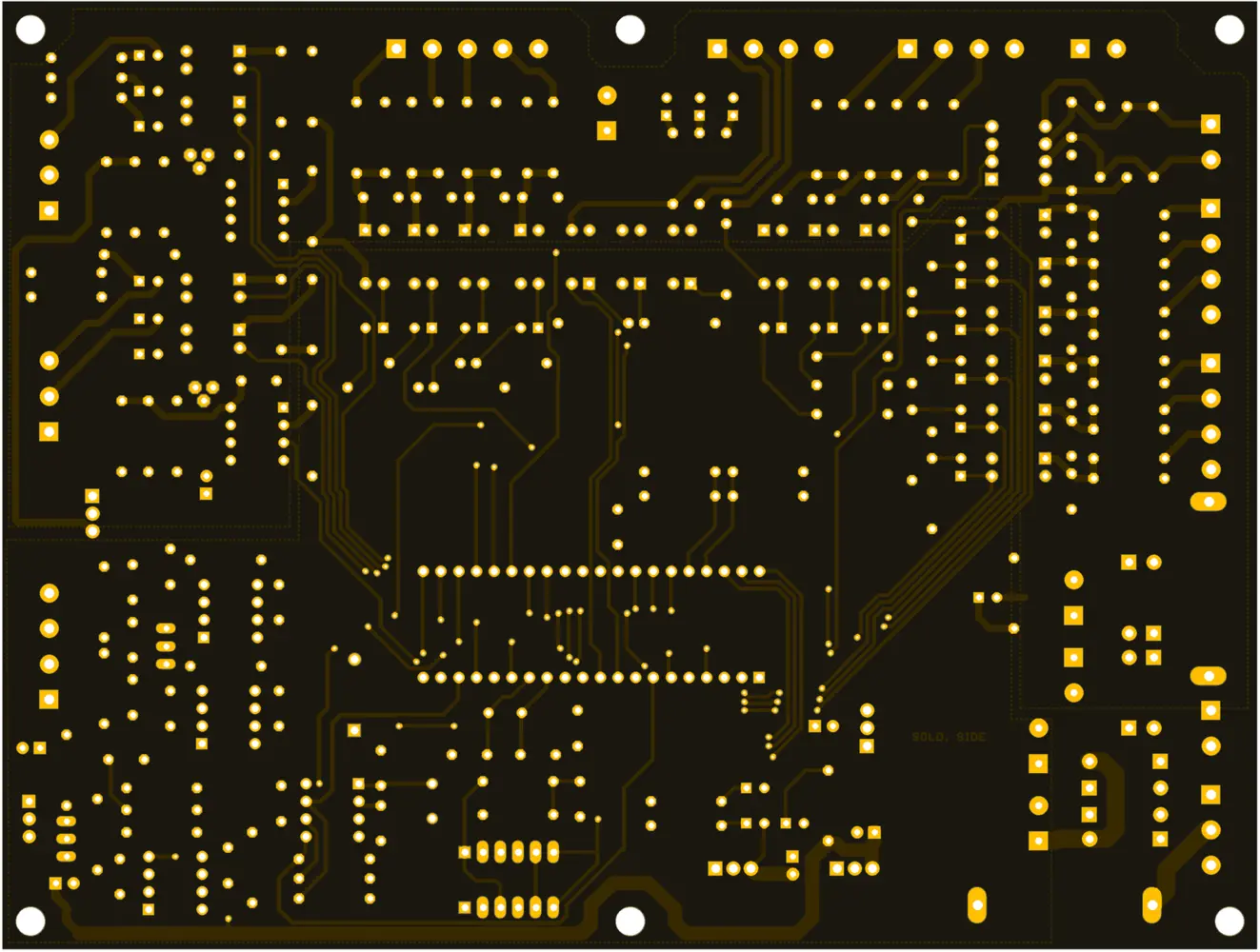

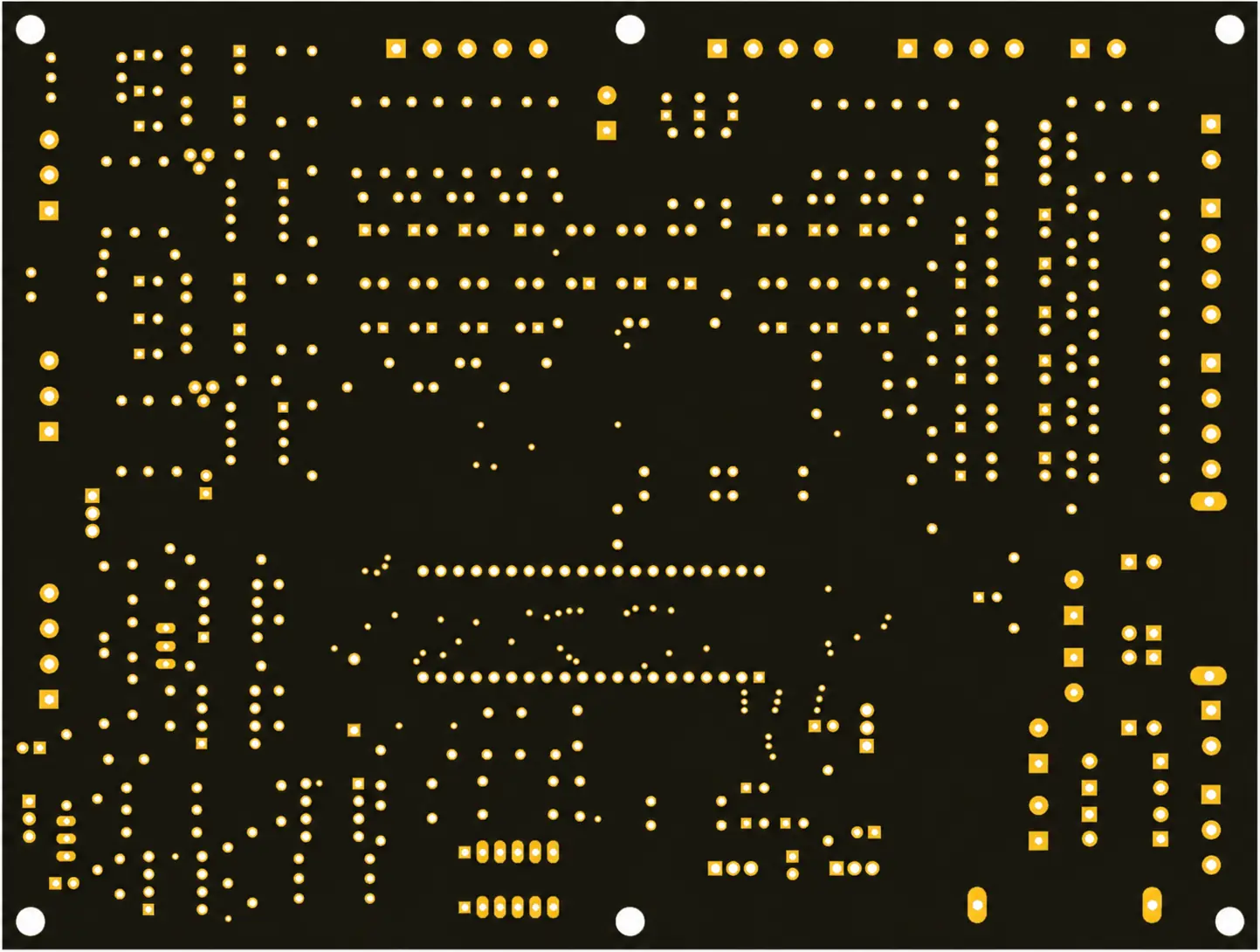

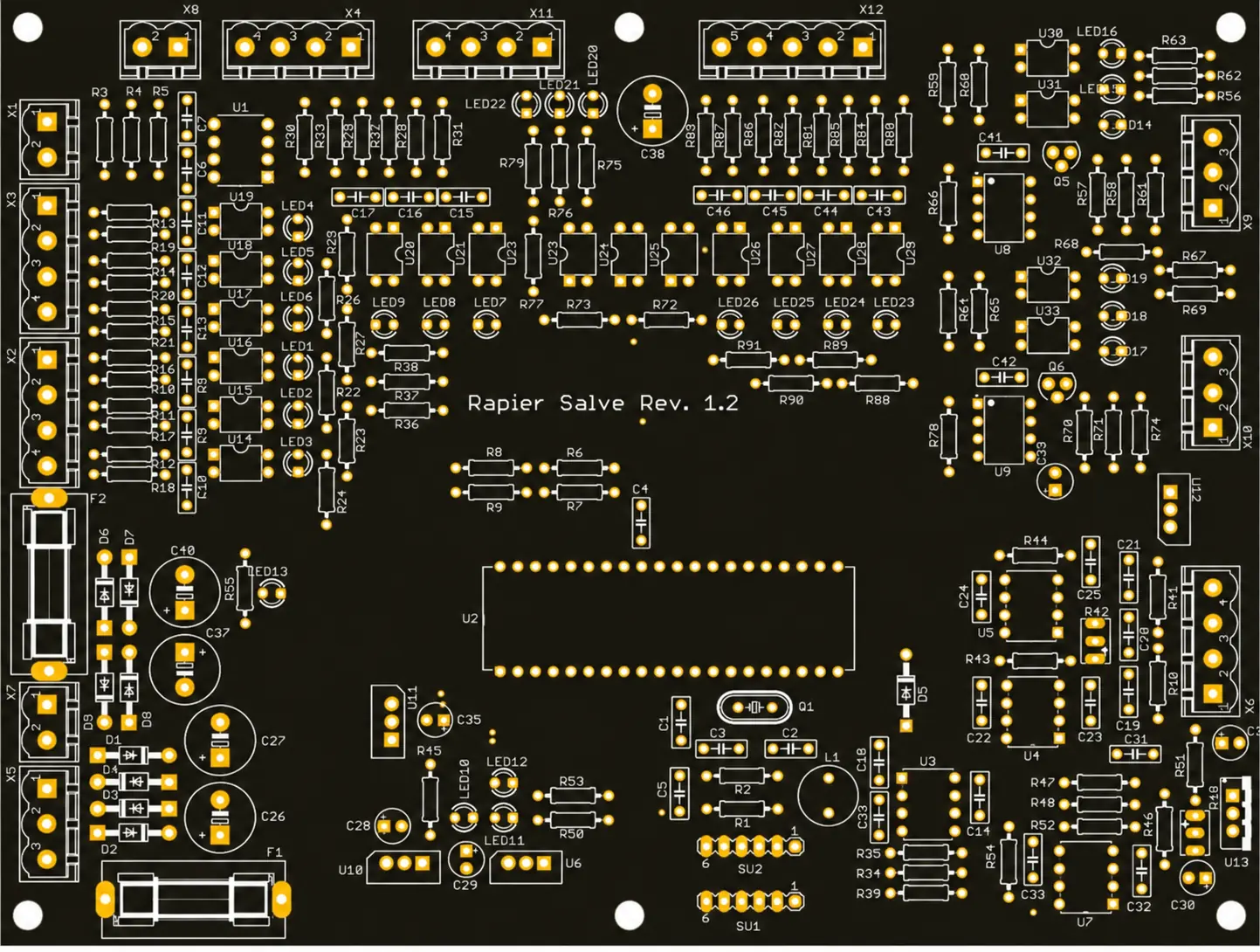

• Configurable electronic let-off/take-up control for rapier machines.

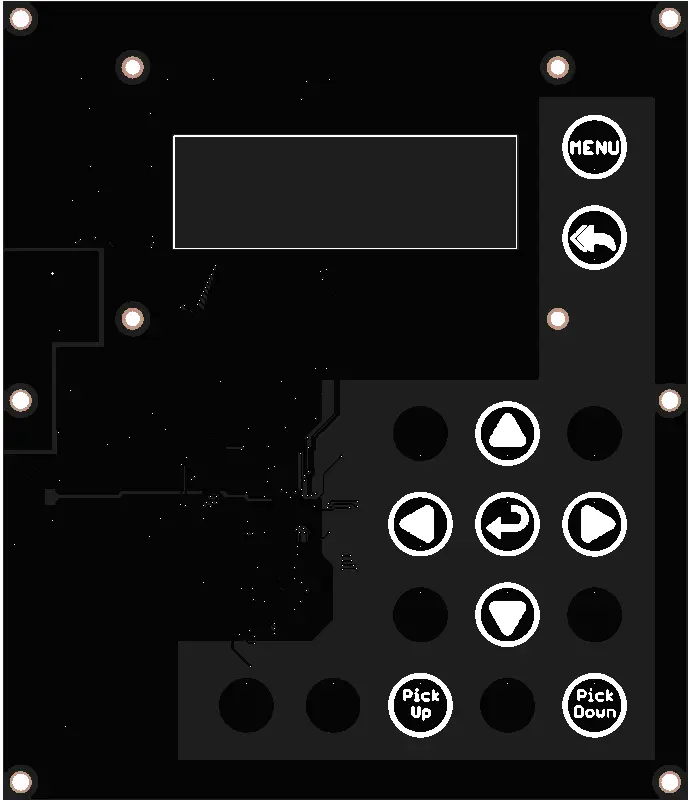

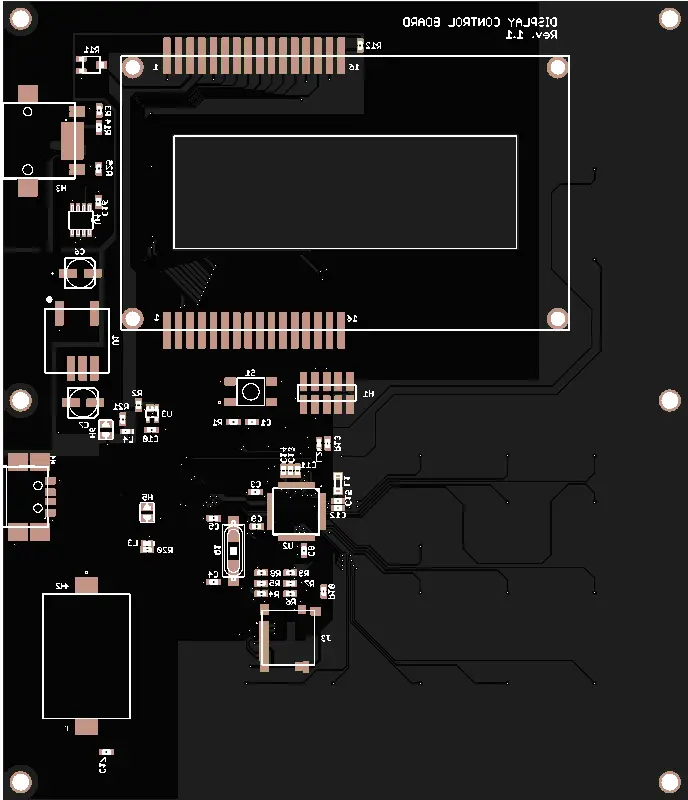

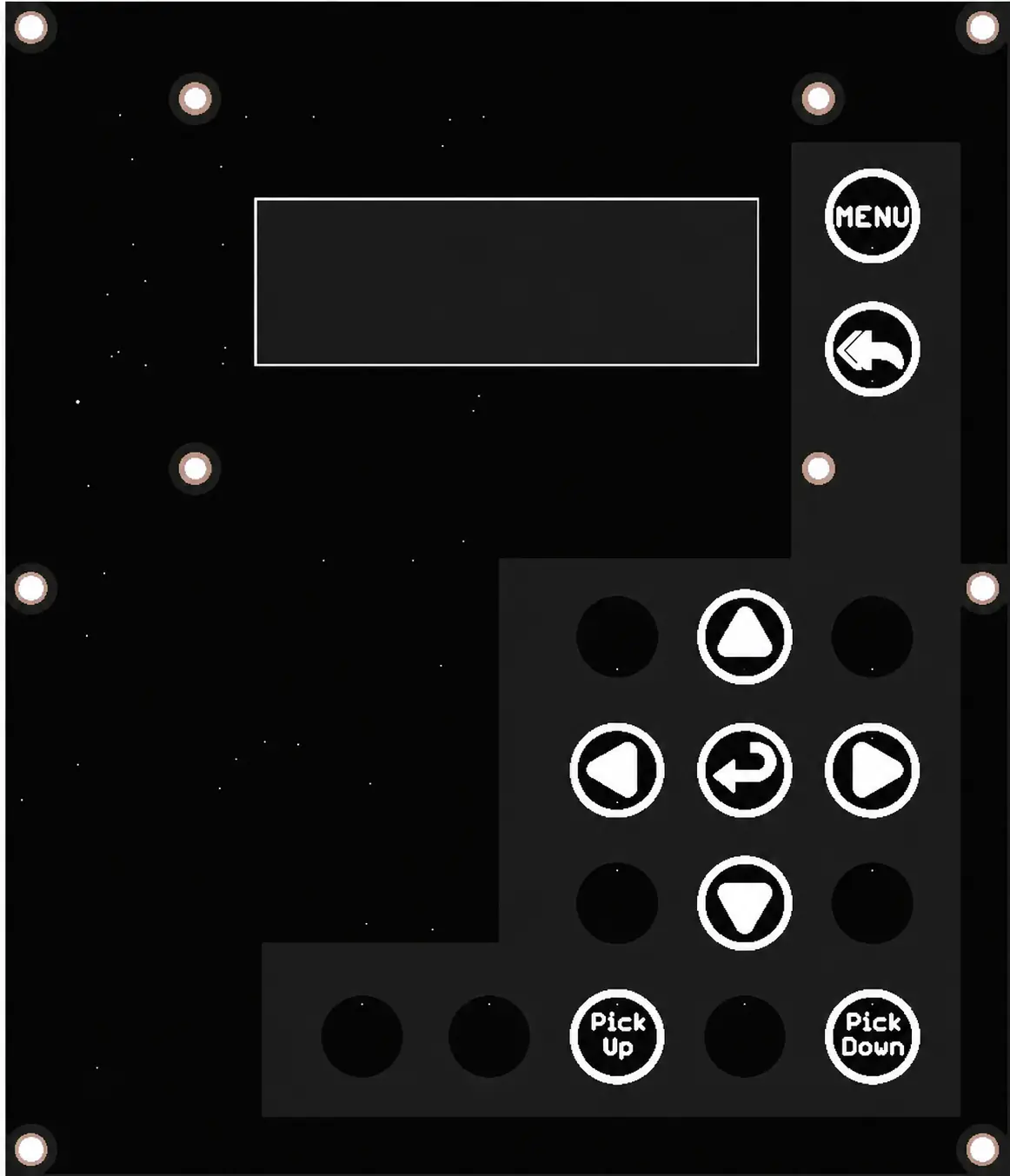

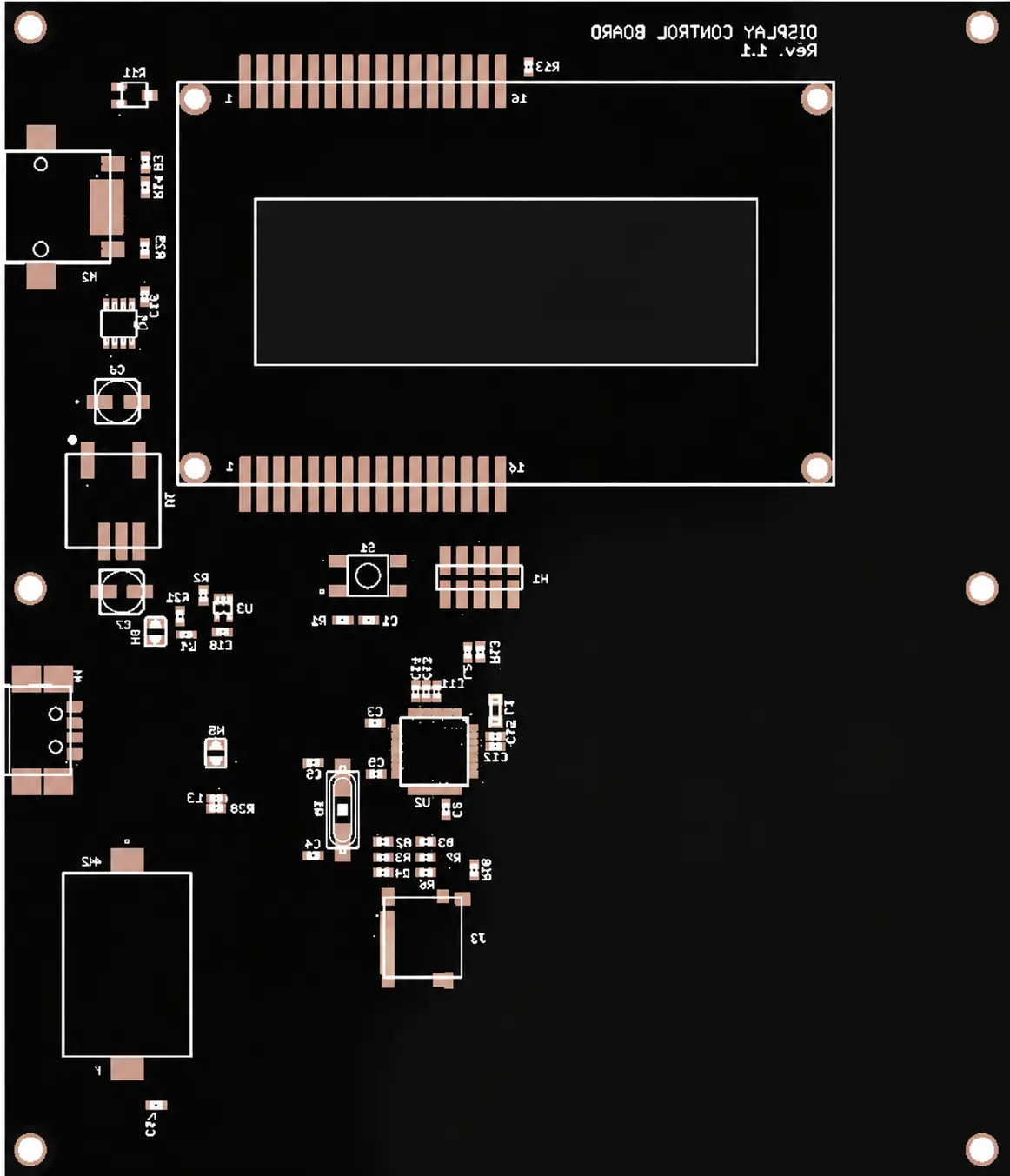

• PCB-integrated capacitive touch interface that eliminates mechanical switches.

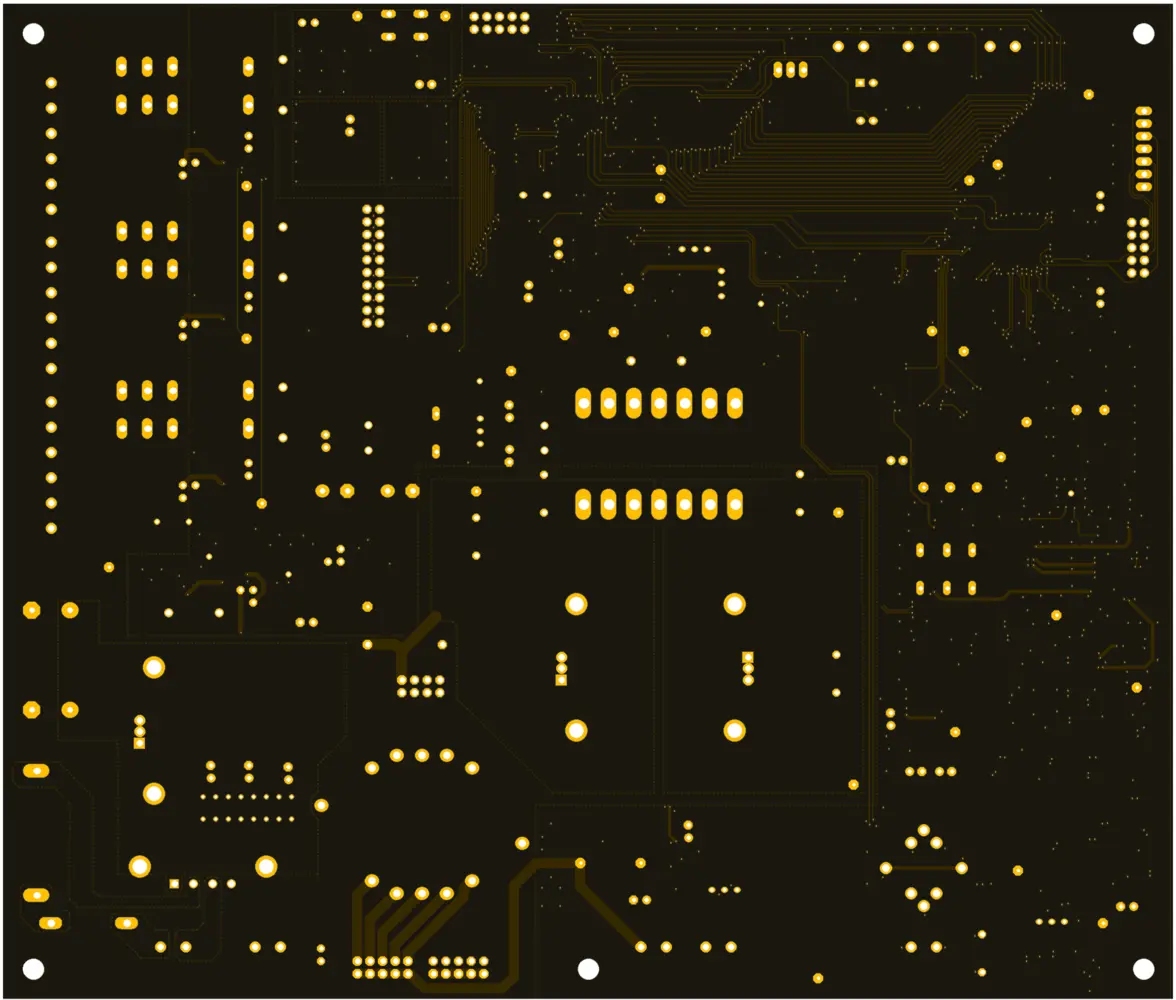

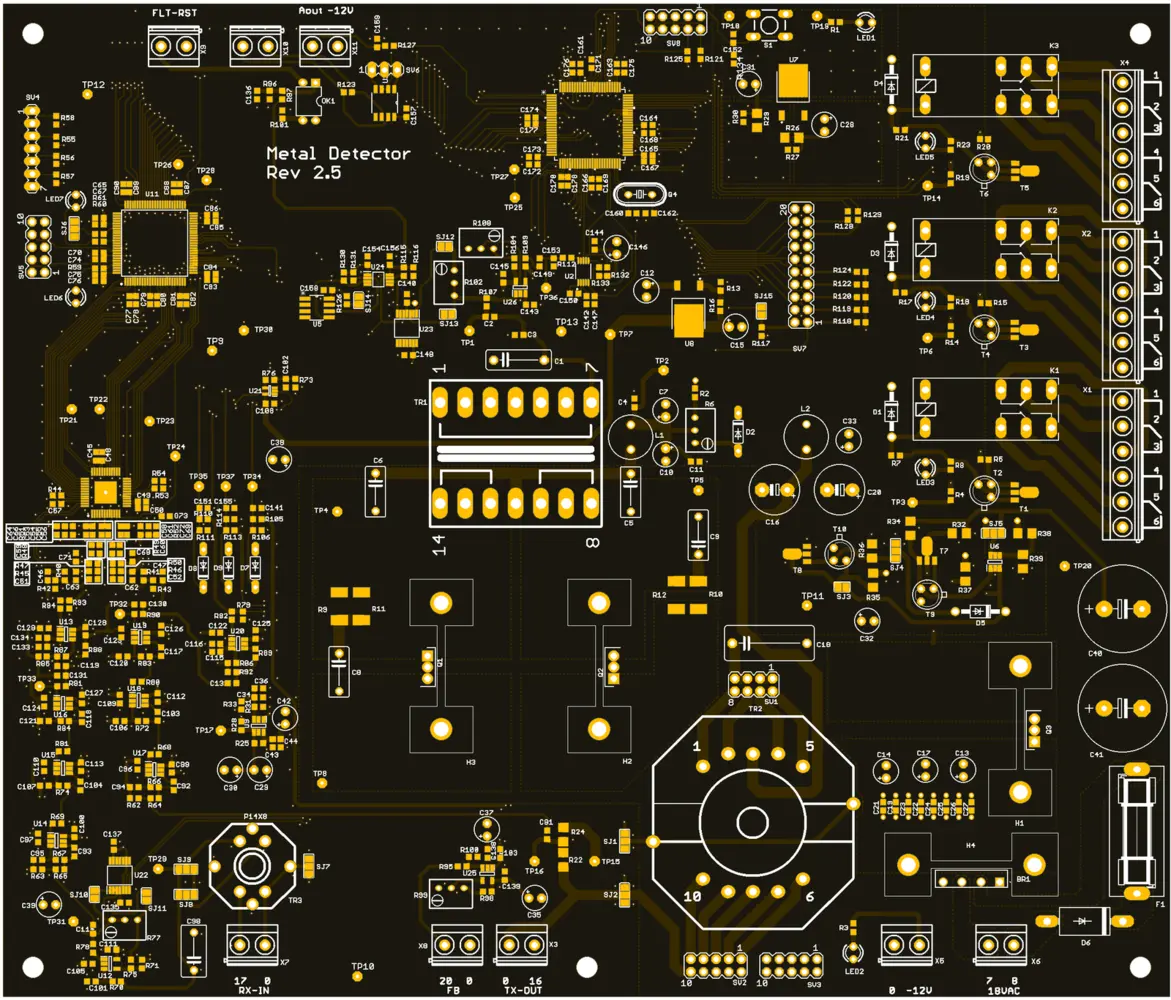

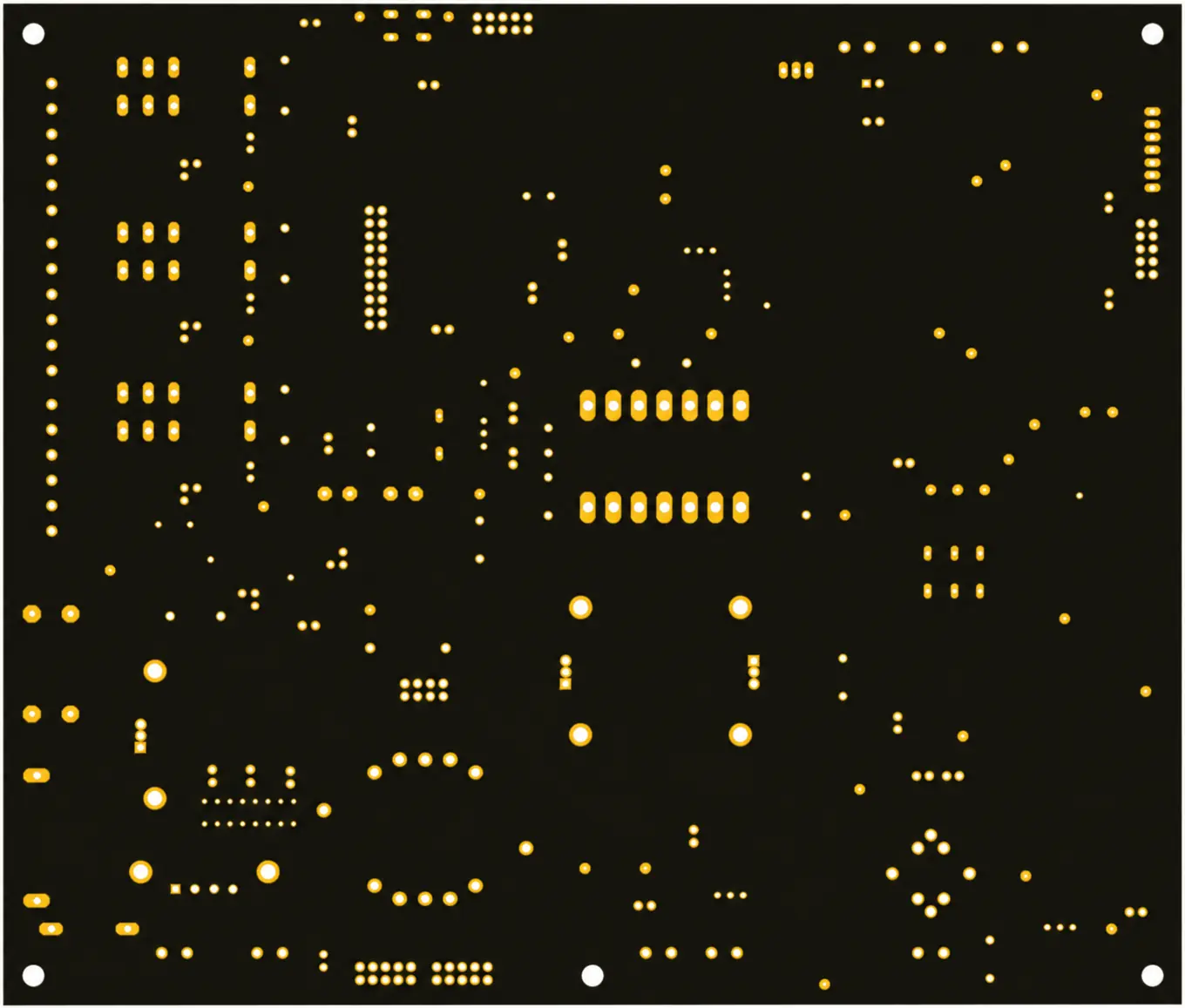

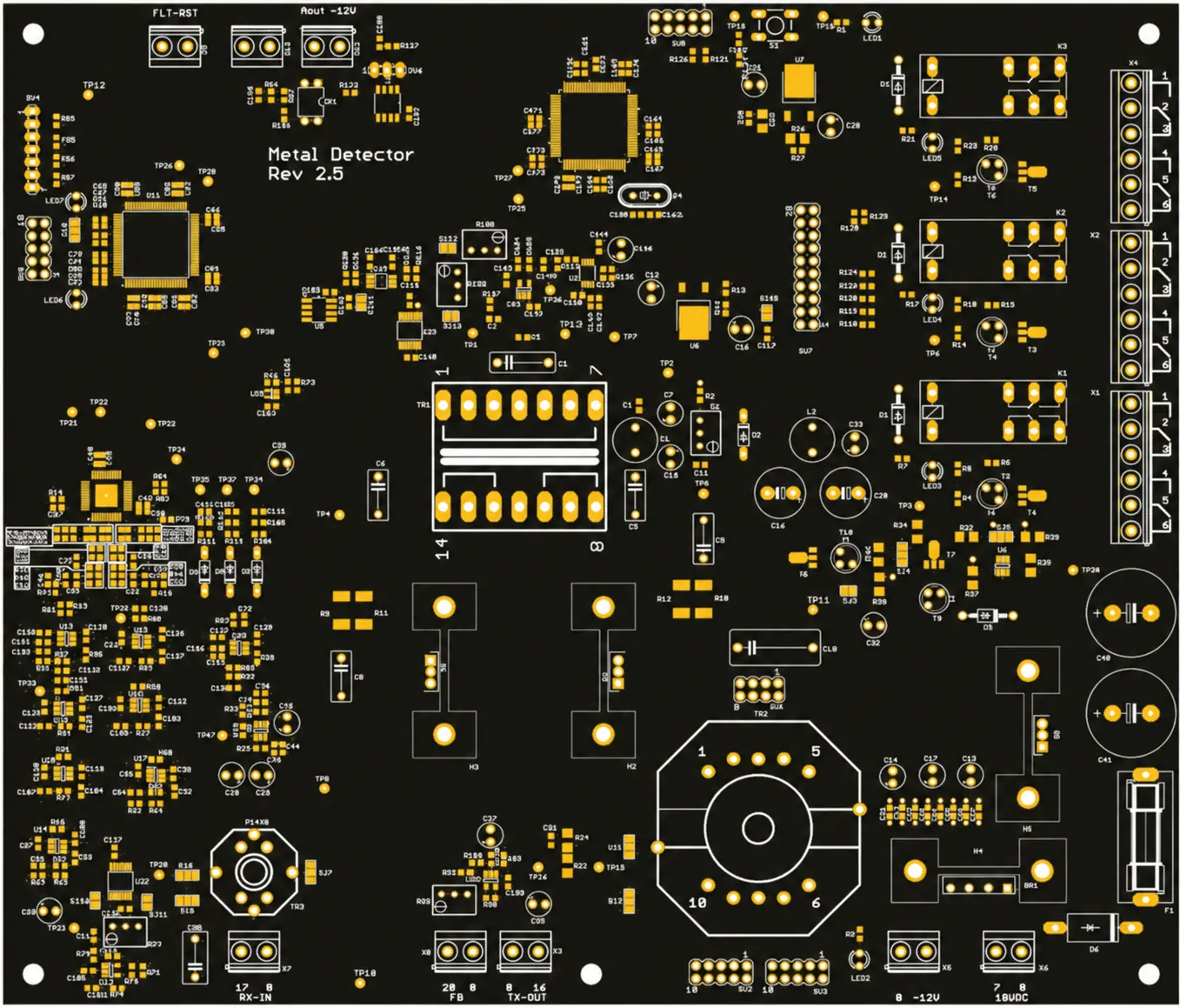

Detection electronics developed for OEM material-transport systems handling coal, cement, ores and other bulk materials.

• Designed for high cross-sectional-area search coils.
• FPGA-based high-speed mixed-signal processing.
• 16 × 4 character display for configuration and operating information.
• Galvanic isolation, adjustable speed and sensitivity, and configurable outputs.
• Remote-operation option and scalable architecture for multiple industrial sectors.

Rugged, repairable and cost-conscious monitoring electronics developed for agricultural and general-purpose equipment.

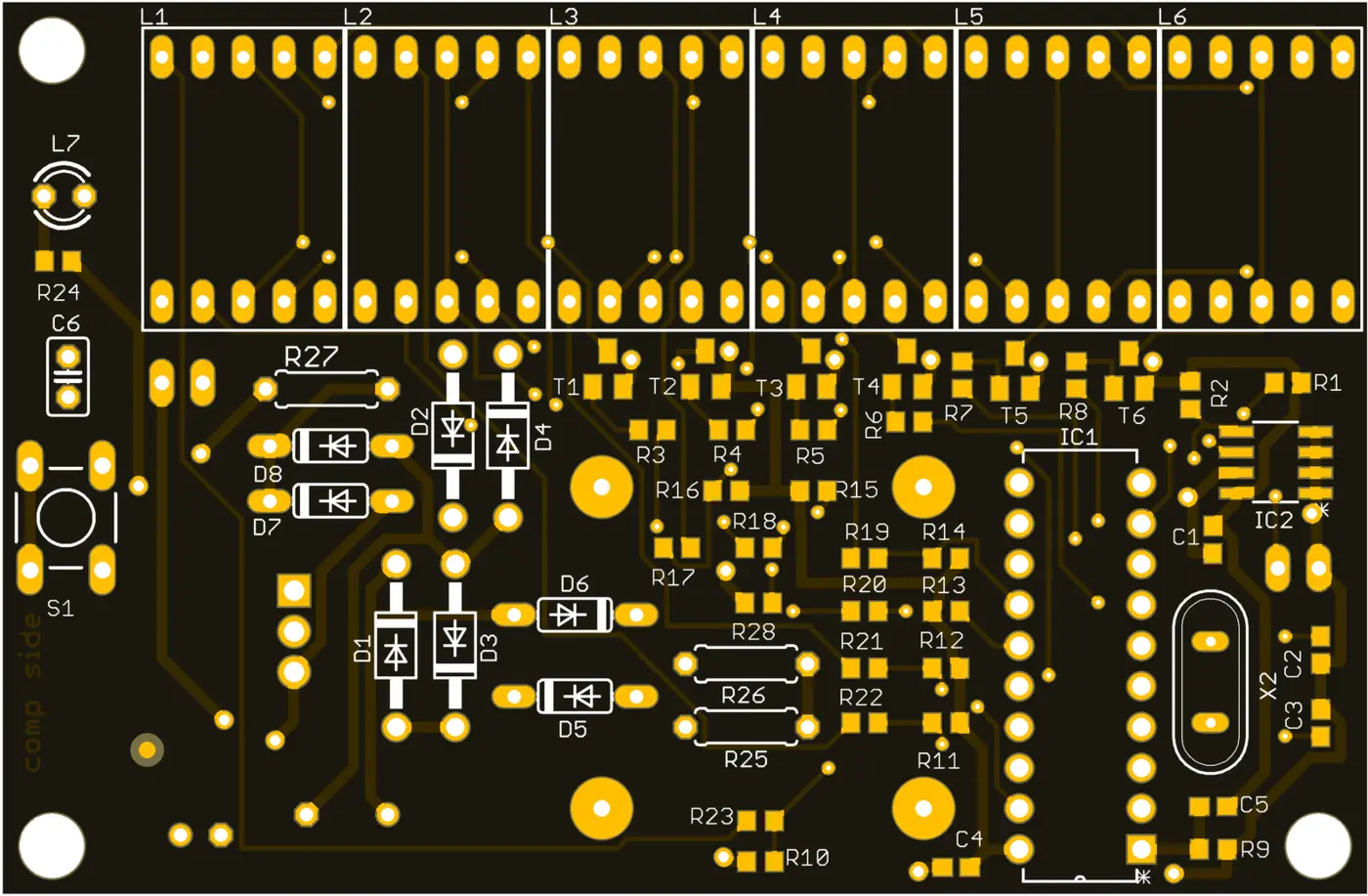

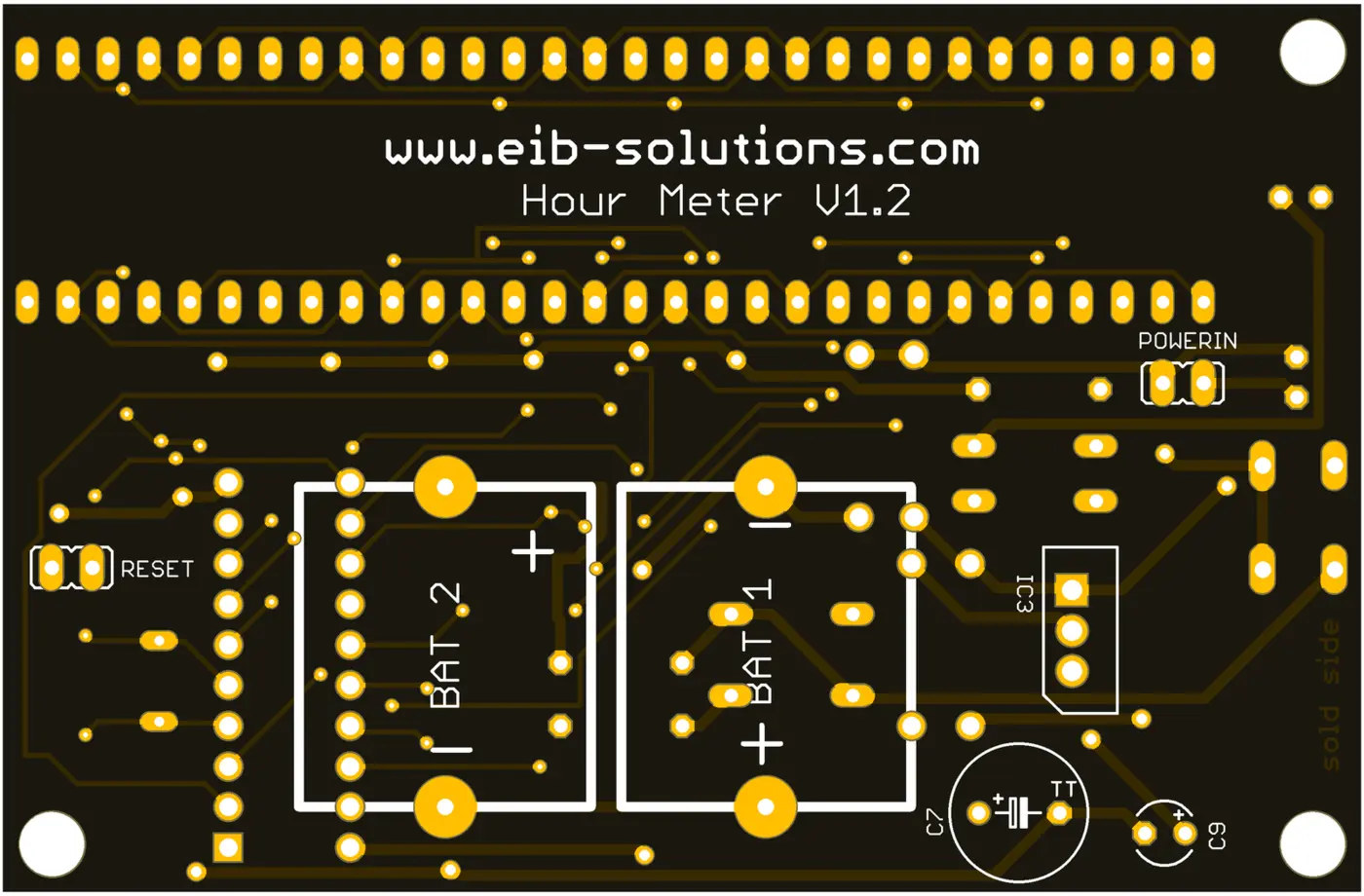

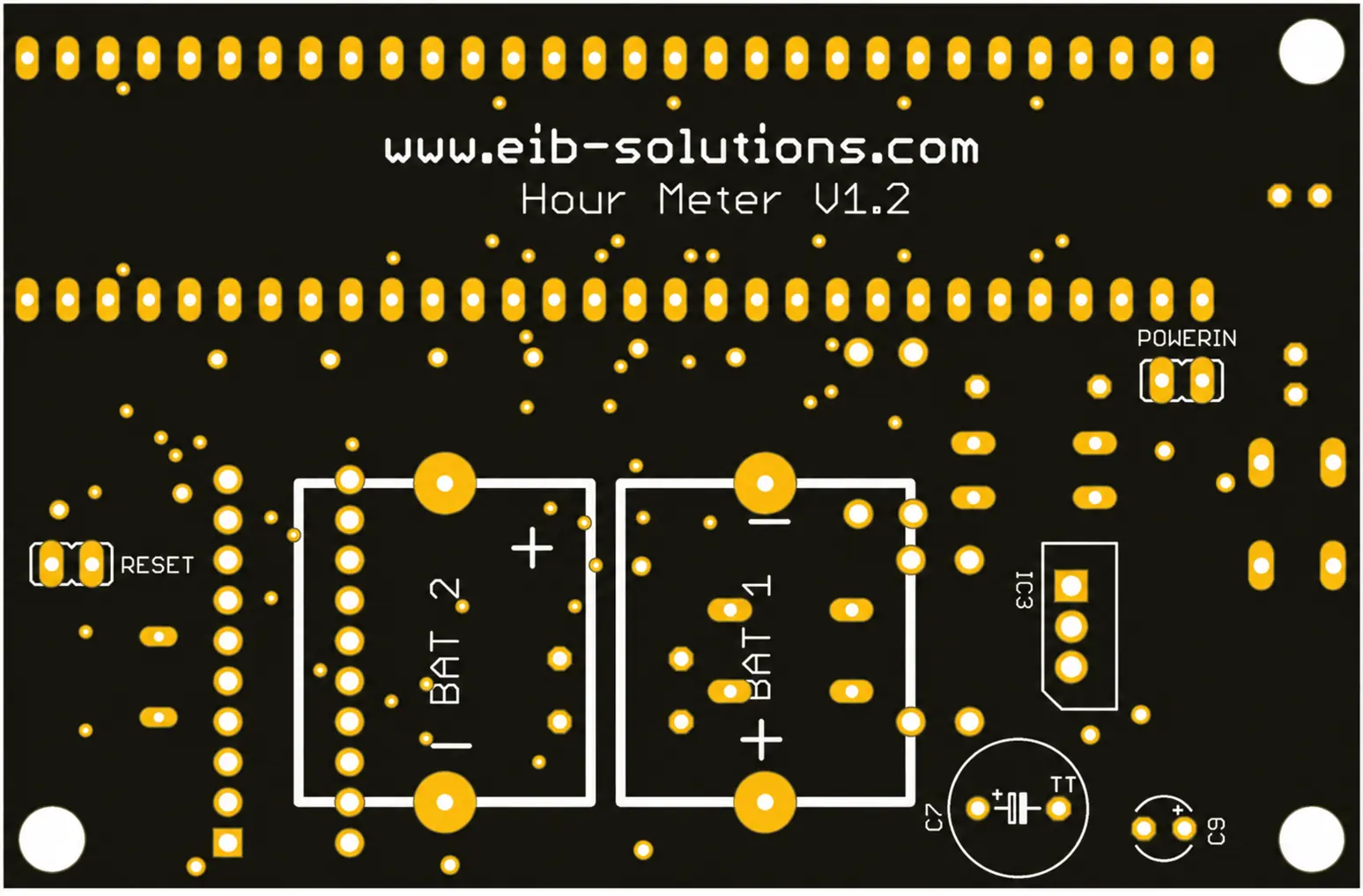

• Hour meter with one-minute resolution, 9,999-hour capacity and surge-tolerant design.

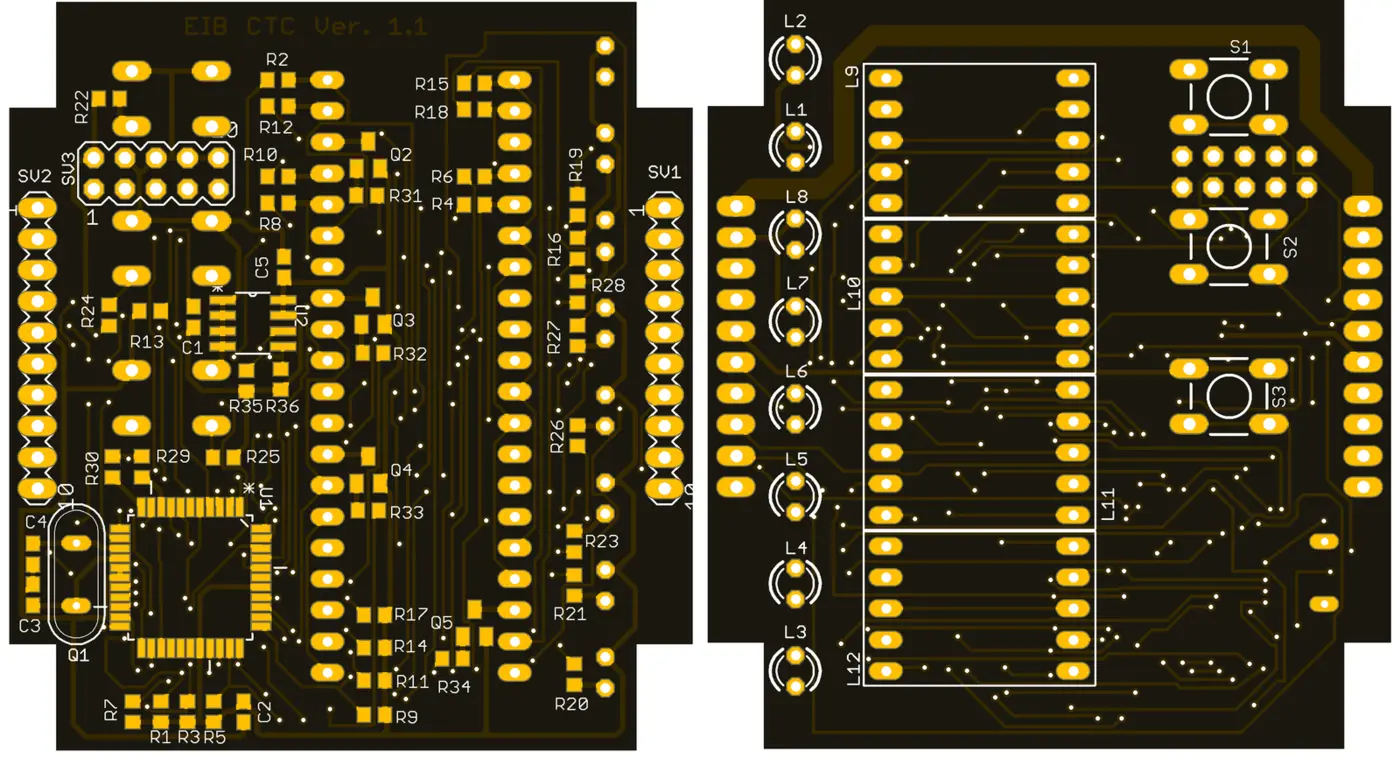

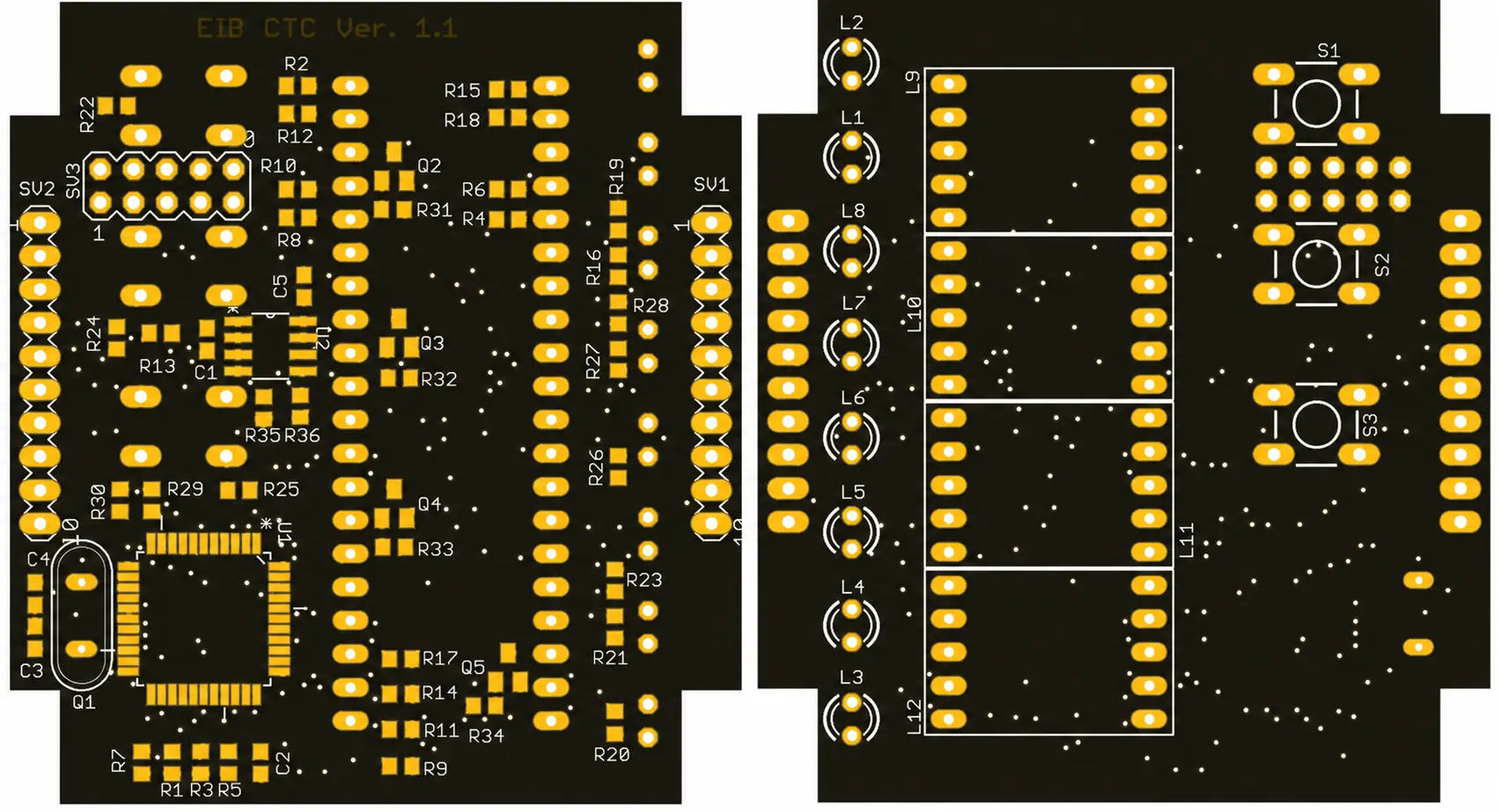

• Cyclic timer/counter with 999.9-digit resolution in seconds, minutes or hours.
• Counter, timer and configurable RPM-meter operating modes with relay output.

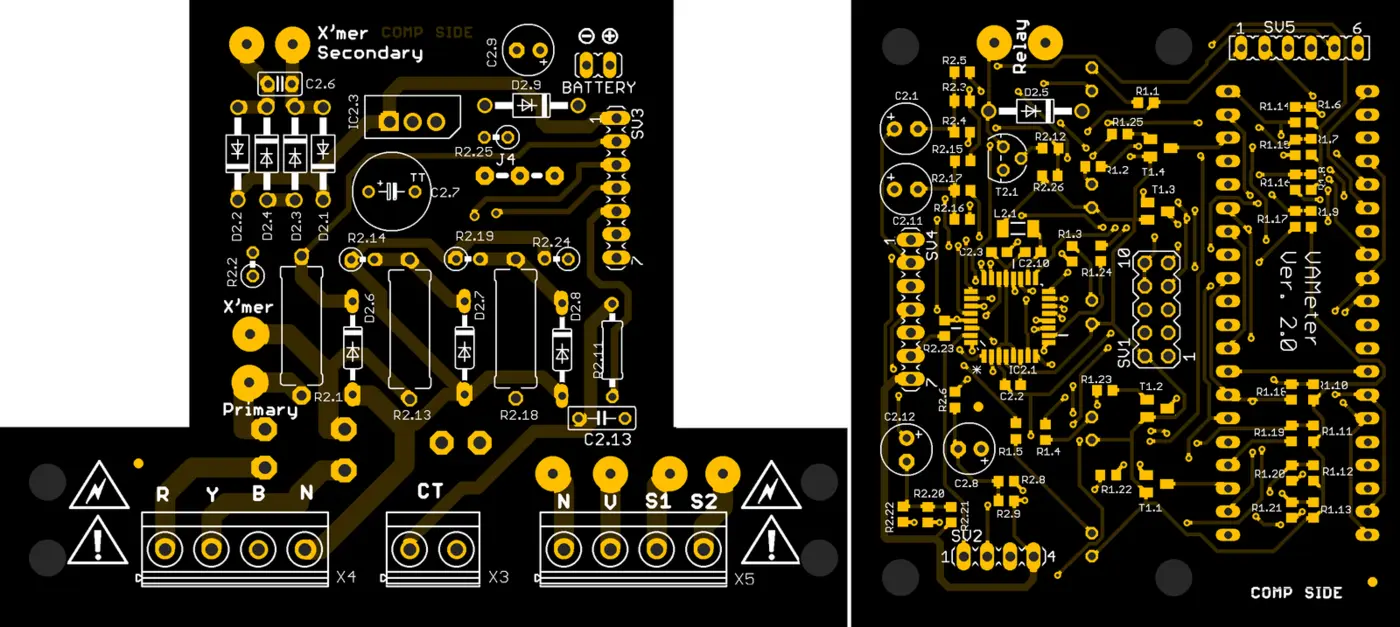

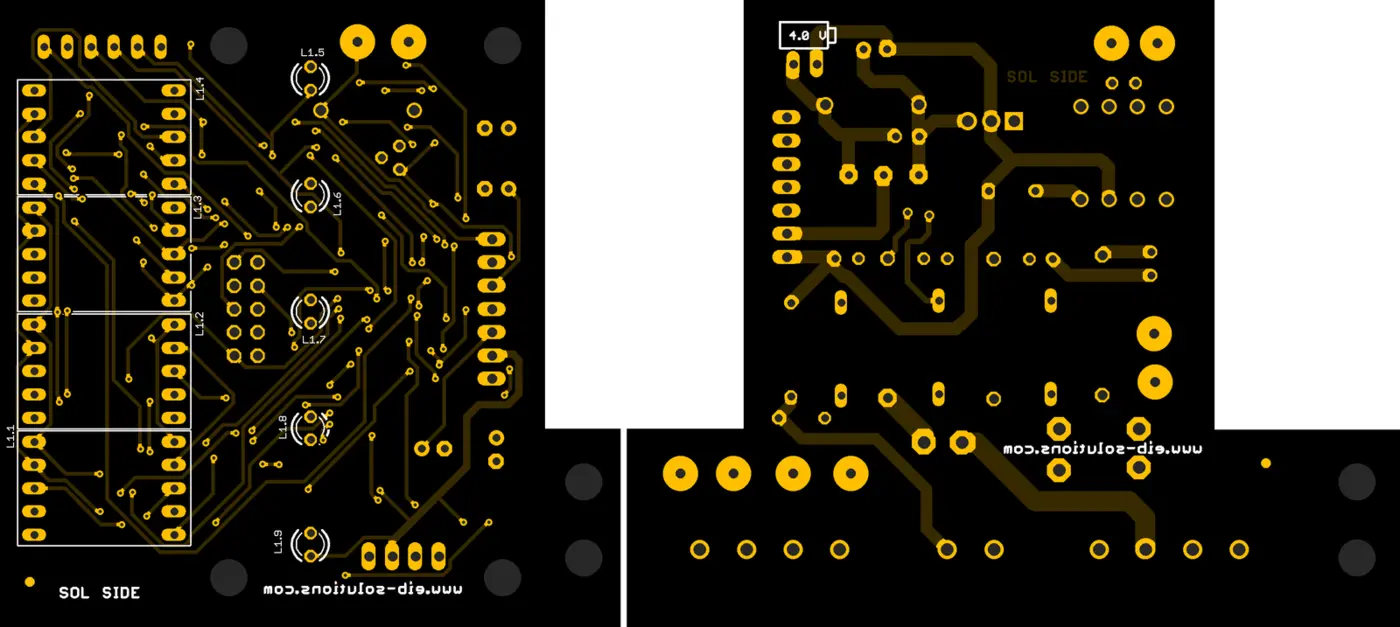

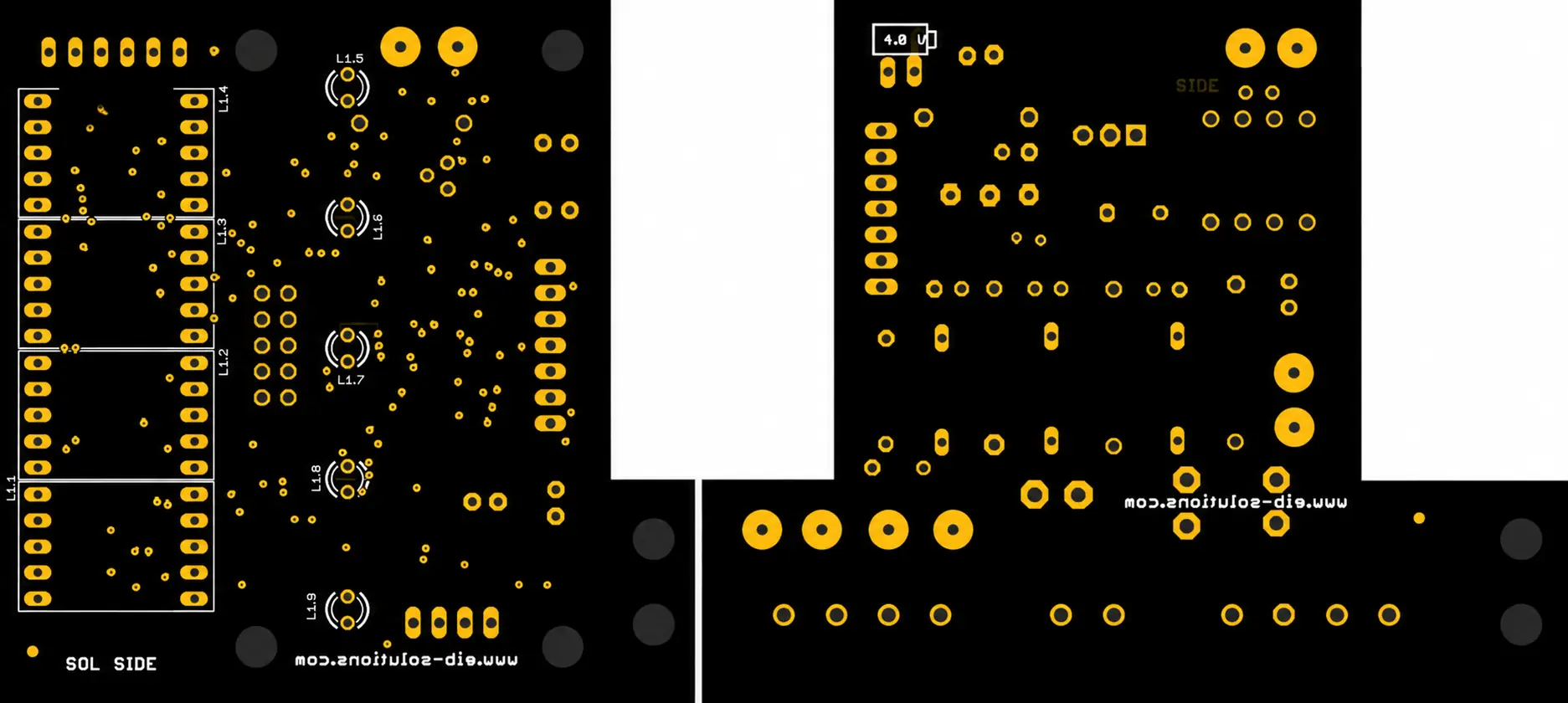

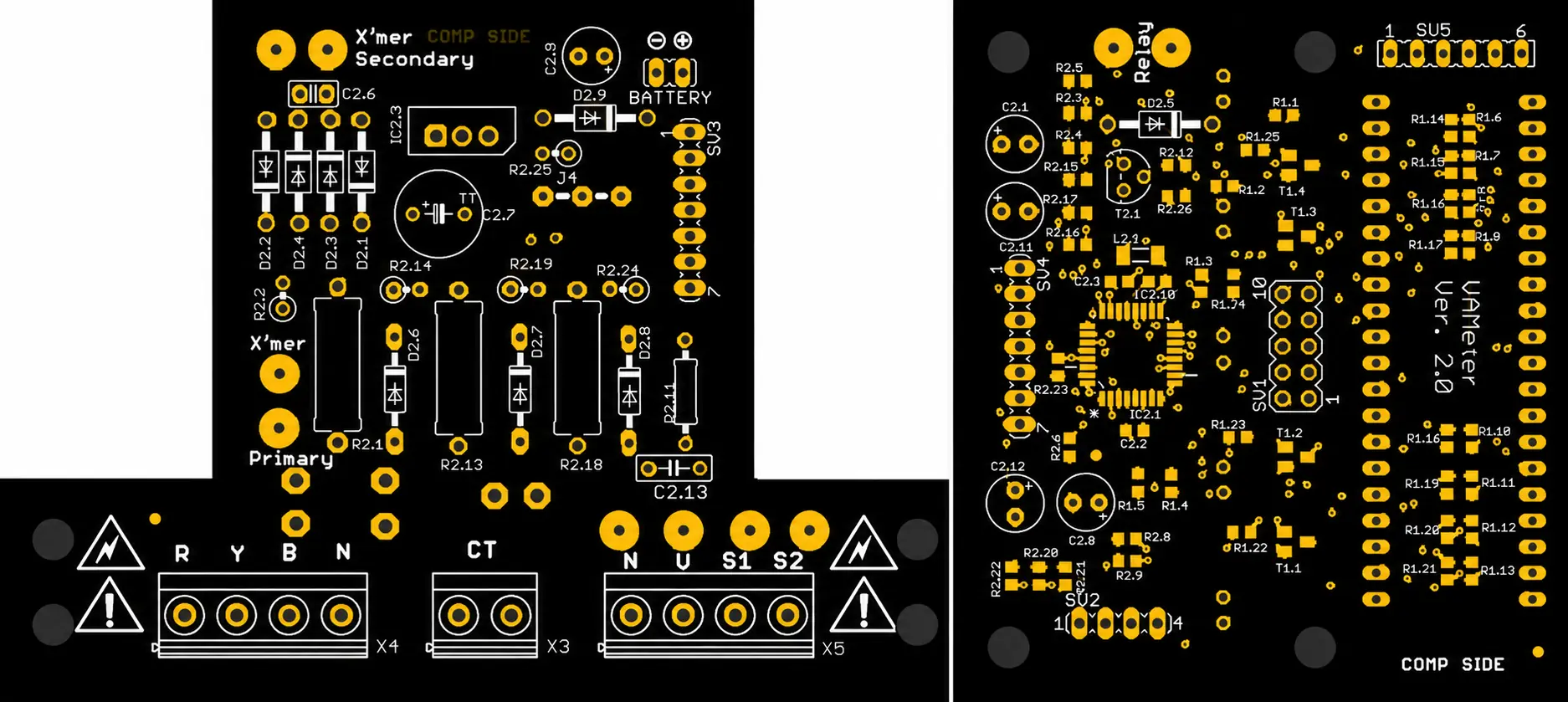

• Three-phase voltage/current monitoring with optional GSM/GPRS connectivity.
• Low/high voltage, overcurrent, undercurrent, single-phasing and reverse-phasing detection.

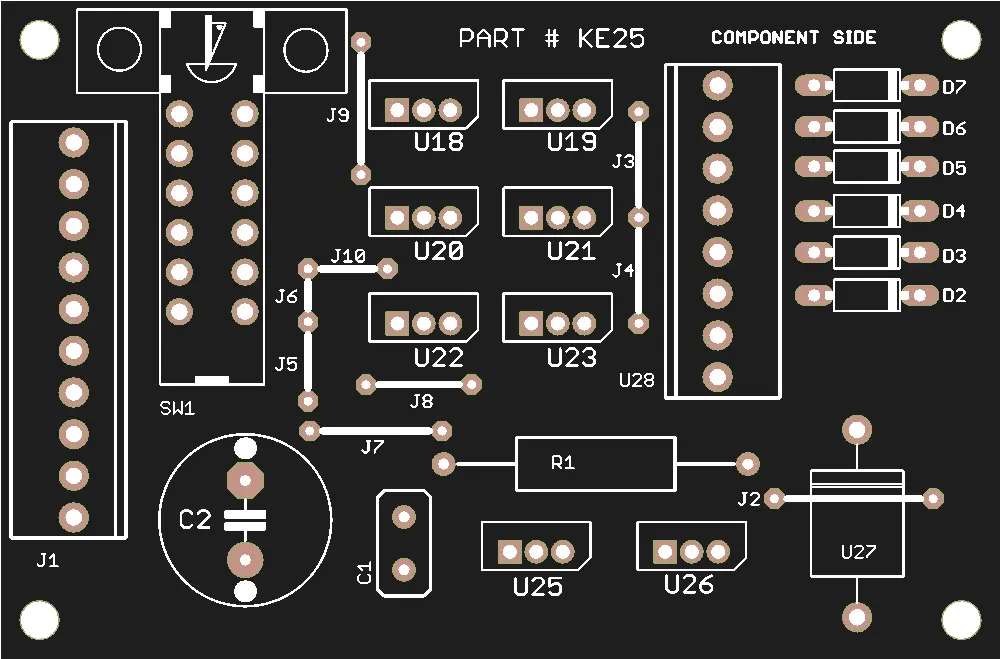

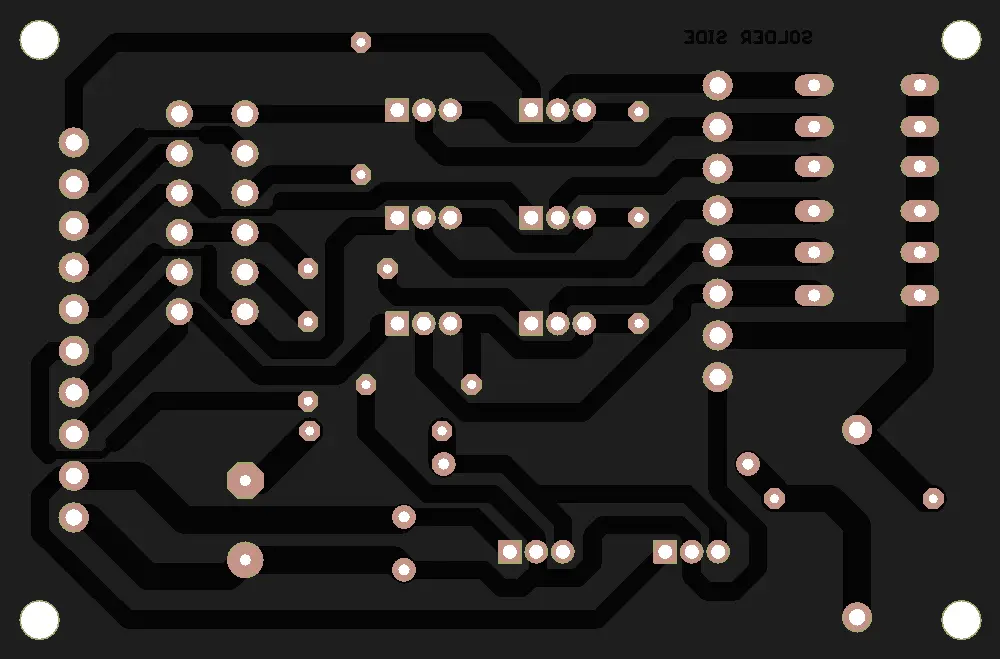

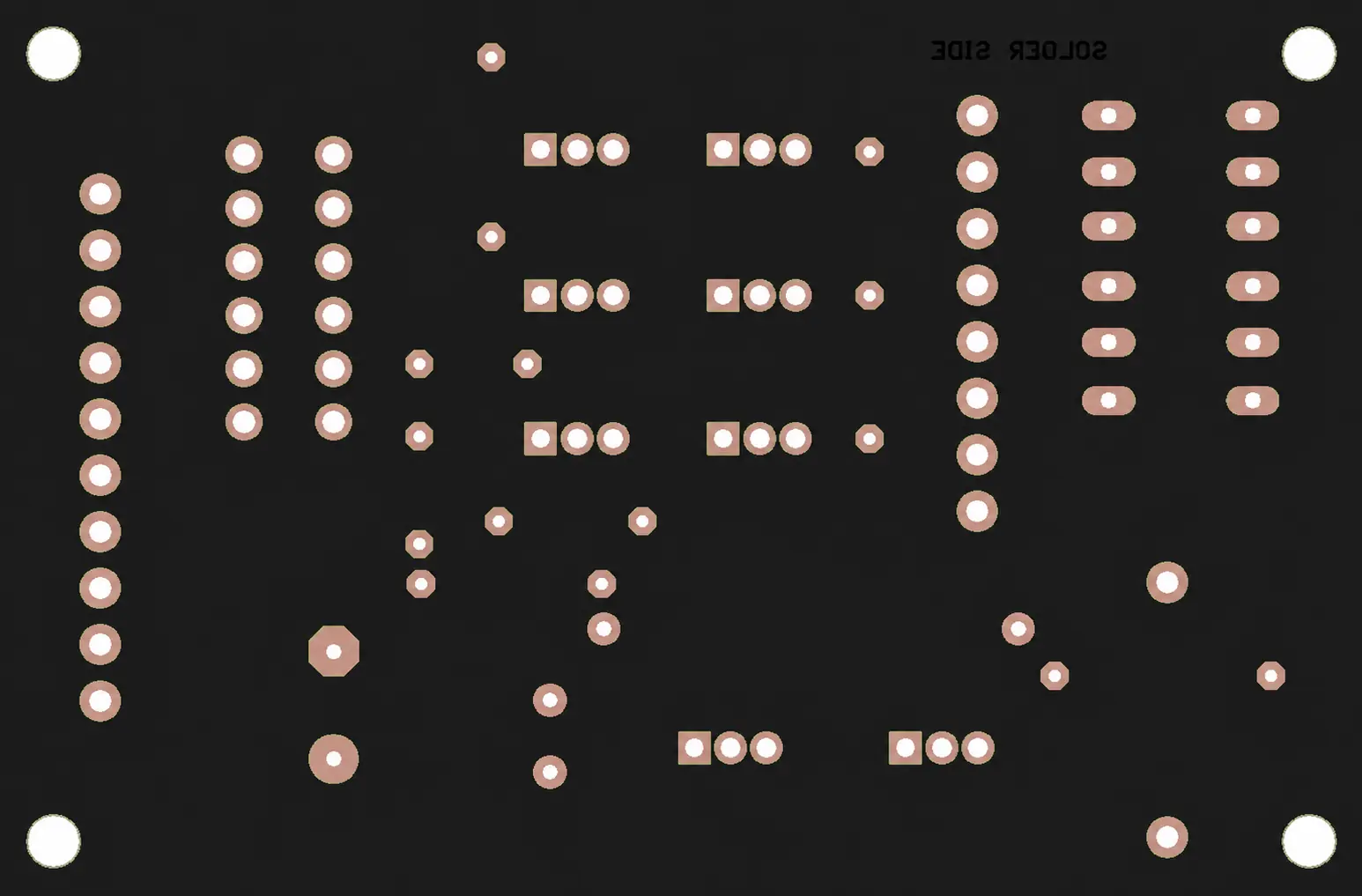

Targeted board redesign and functional improvement that preserves the surrounding machine, mechanical interfaces and installed wiring.

• Replaces obsolete components while retaining the original board form factor.
• Avoids front-panel and complete-system redesign where practical.

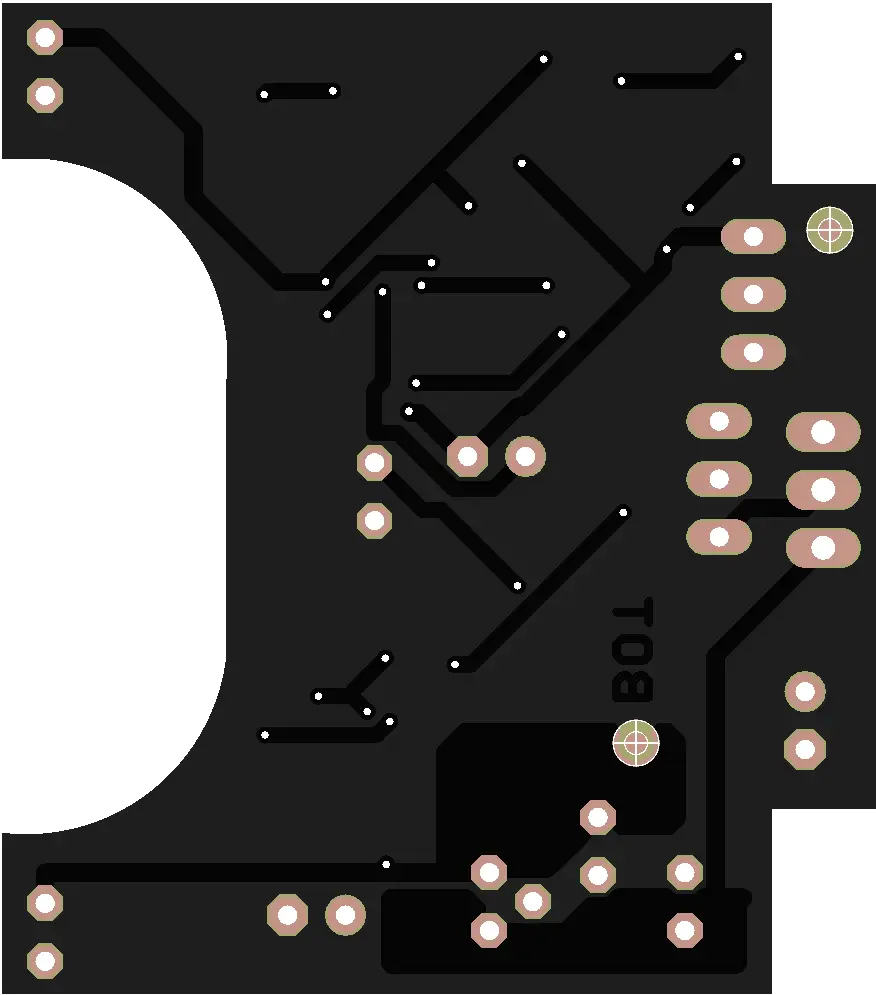

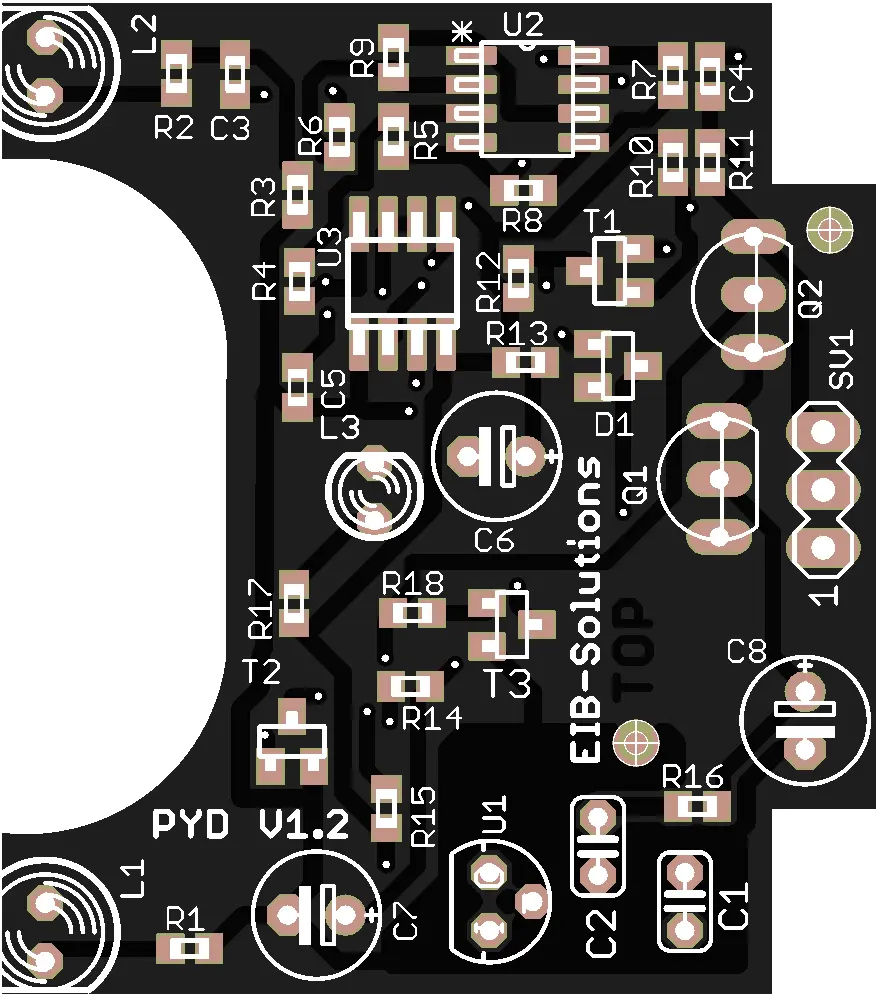

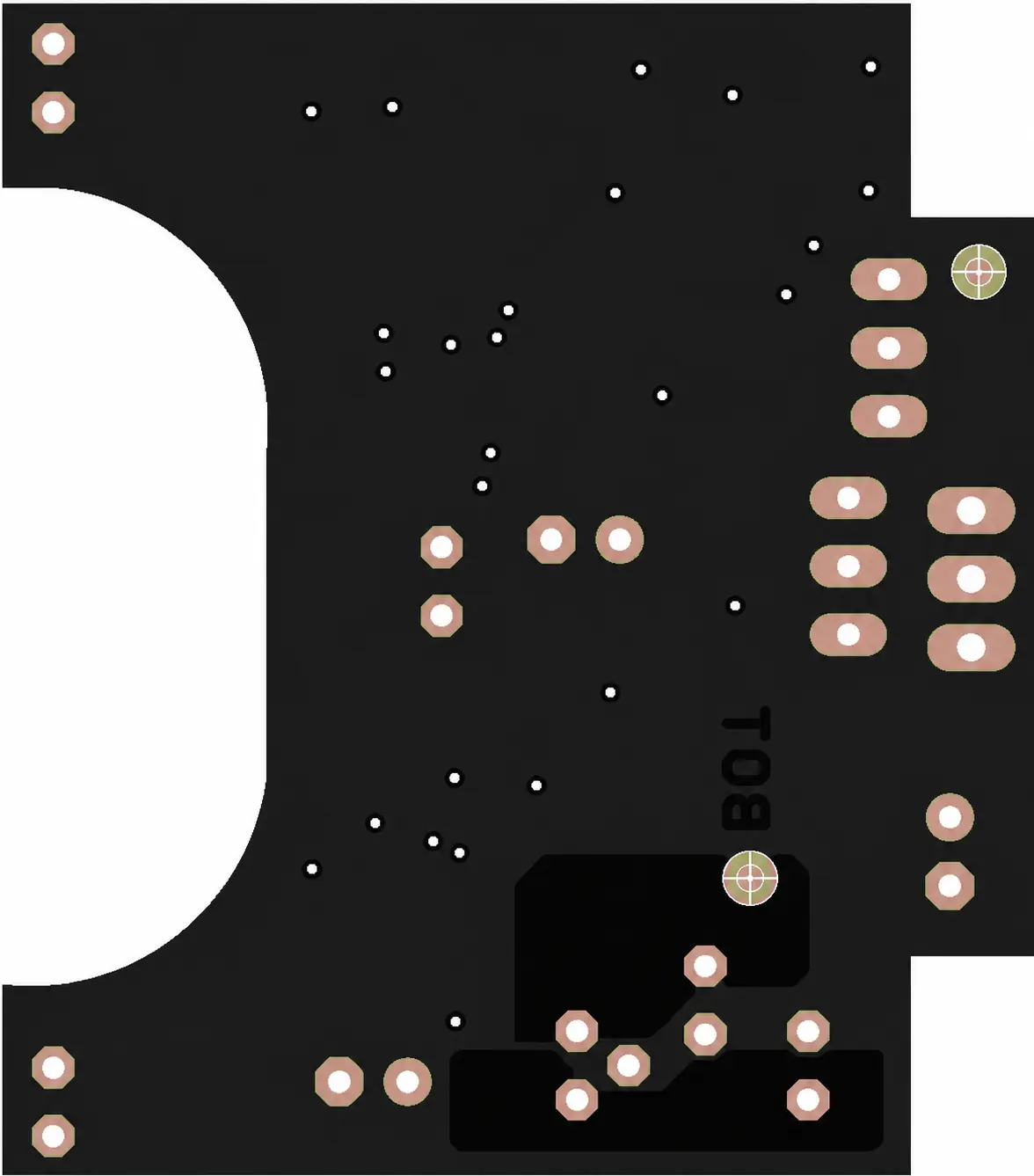

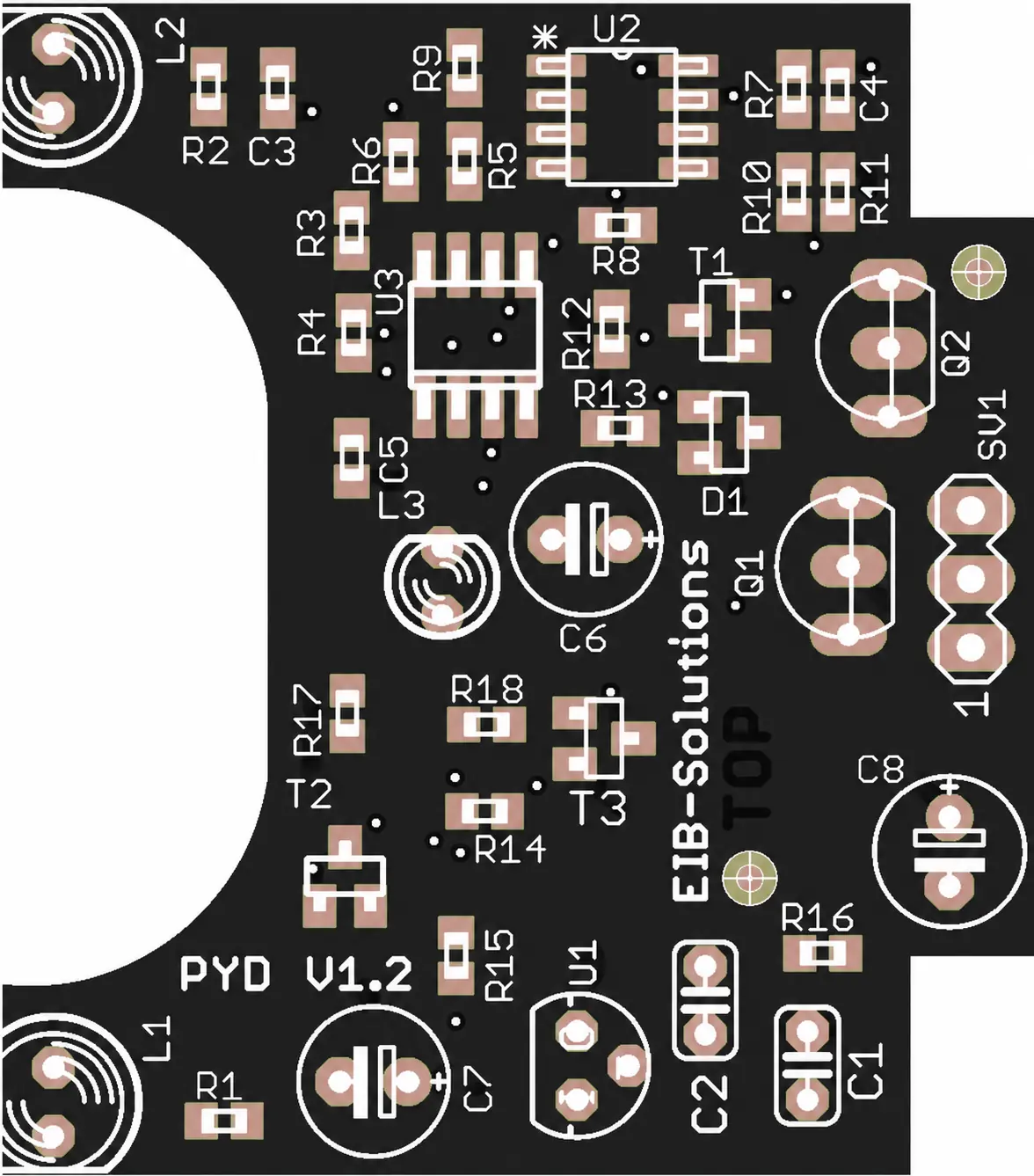

• Sensitive analog optical detection for thread-break monitoring in texturising machines.

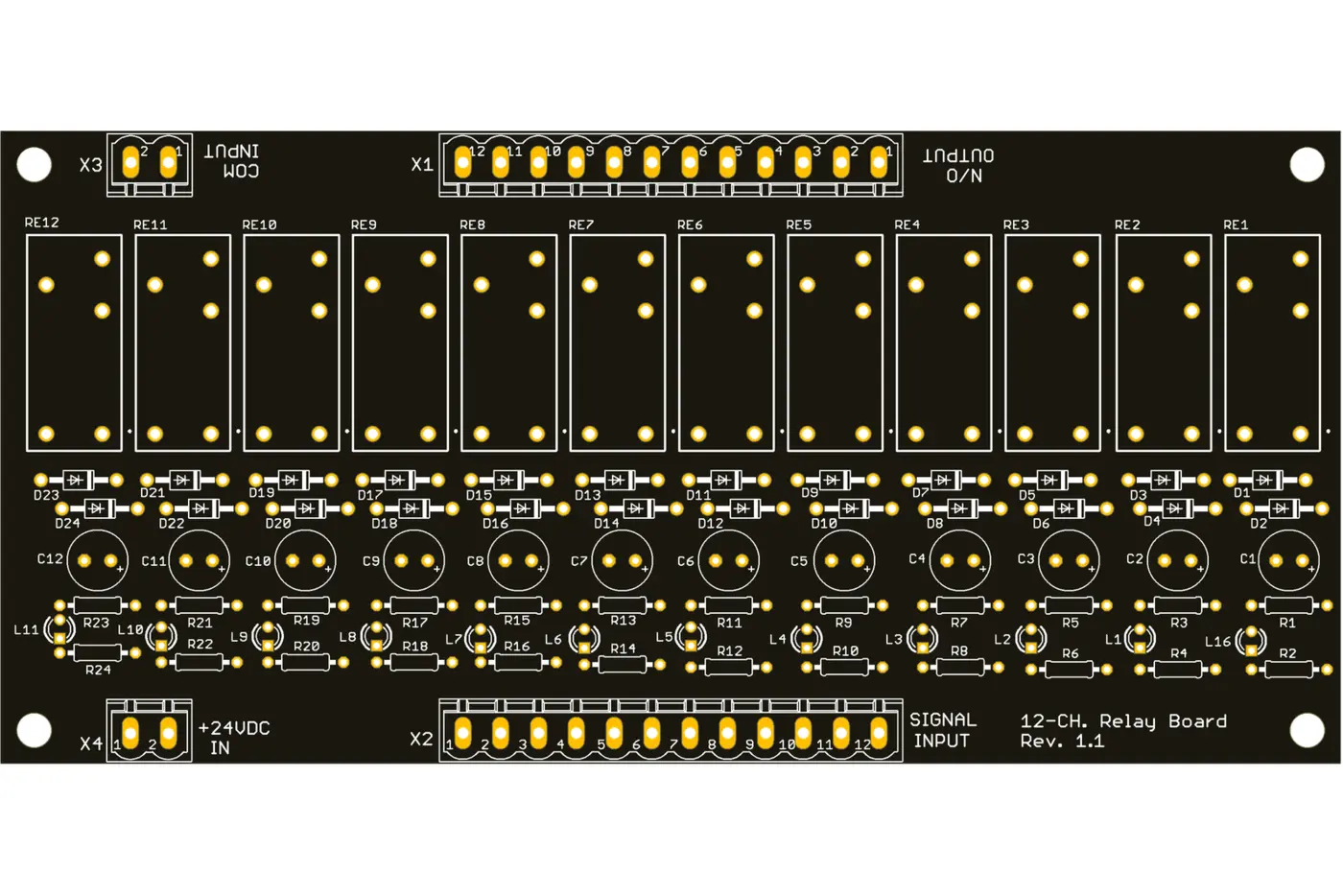

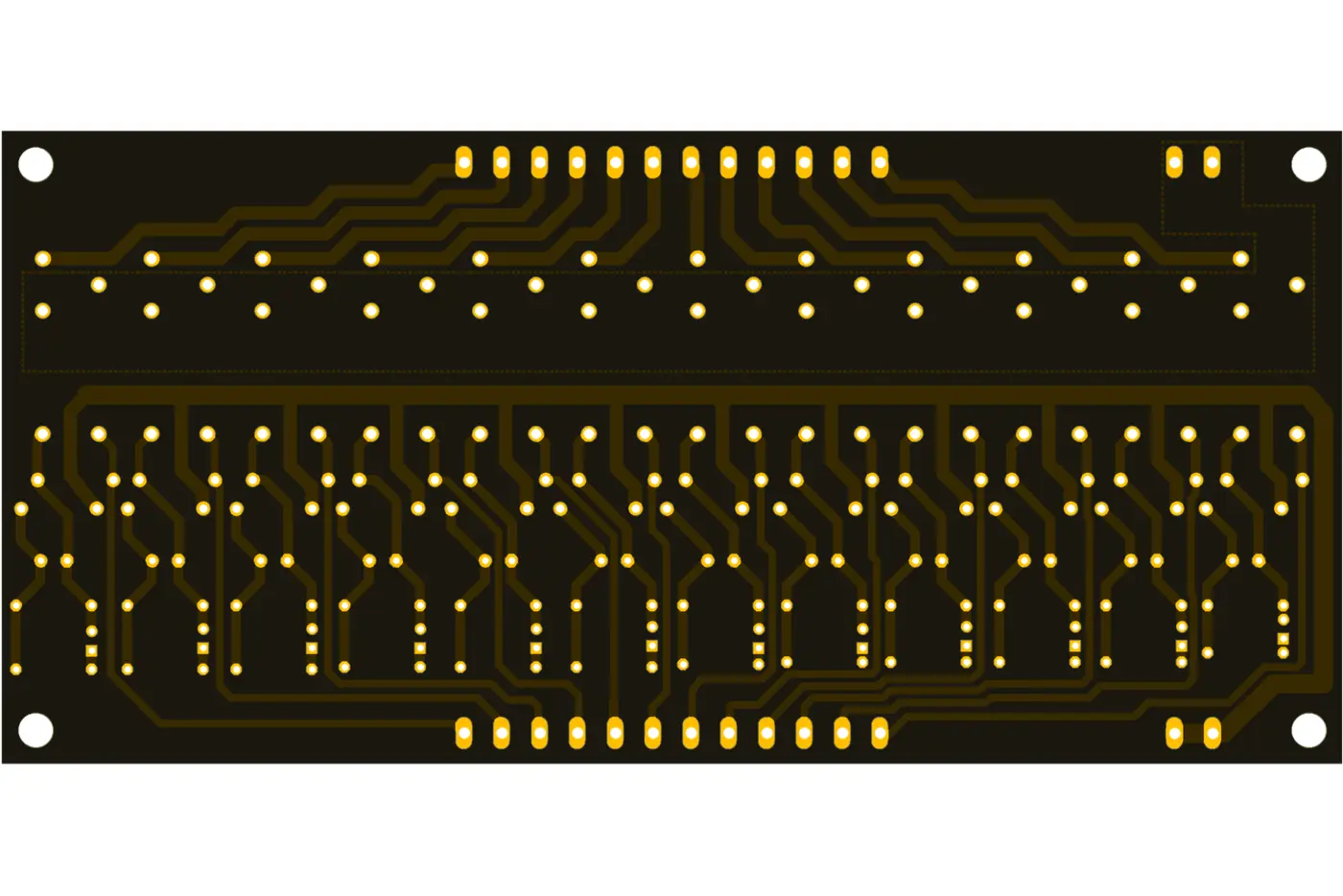

• Lower-power relay control to reduce coil heating and energy consumption.
• Cost-effective modernization of serviceable legacy equipment.
